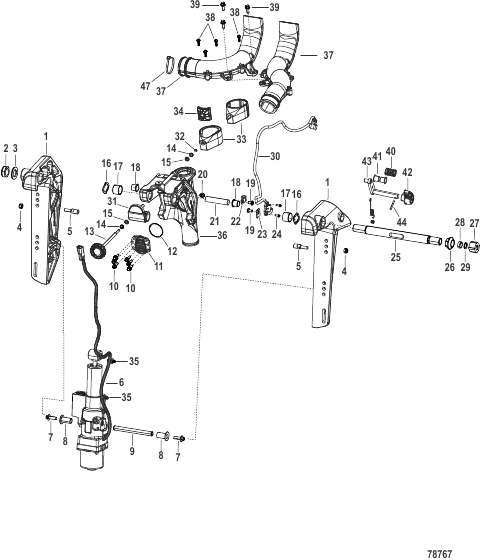

Transom Bracket
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0224137 |
TRANSOM BRACKET Port TRANSOM BRACKET Port |
1 | |
| 1 | 8M0224138 |
TRANSOM BRACKET Starboard TRANSOM BRACKET Starboard |
1 | |
| 10 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
6 | |
| 11 | 8M0224151 |
KEY PLATE Steering Limit KEY PLATE Steering Limit |
1 | |
| 12 | 842636 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.739 x 0.070) O-RING (1.739 x .070) |
1 | |
| 13 | 8M0224169 |
KNOB Steering Friction 75e Tiller Handle Models KNOB Steering Friction 75e Tiller Handle Models |
1 | |
| 14 | 8M0224148 |
SEAL Retainer SEAL Retainer |
2 | |
| 15 | 8M0224149 |
SEAL RING Quad SEAL RING Quad |
2 | |
| 16 | 8M0224150 |
WASHER Three Wave WASHER Three Wave |
2 | |
| 17 | 8M0224146 |
BUSHING Swivel BUSHING Swivel |
2 | |
| 18 | 8M0224143 |
BEARING Trim PIn BEARING Trim PIn |
2 | |
| 19 | 8M0098784 |
ВИНТ M6 X 1 X 12 SCREW (M6 x 1 x 12) |
2 | |
| 2 | 826164 |
ГАЙКА (0.875-14) NUT (.875-14) |
1 | superseded |
| 20 | 8M0177279 |
SCREW 5/16-24 x .5 SCREW 5/16-24 x .5 |
1 | |
| 21 | 8M0224144 |
MAG PIN Trim Upper MAG PIN Trim Upper |
1 | |
| 22 | 65653 |
ЗАЖИМ CLIP |
1 | |
| 23 | 8M0224147 |
PLATE Cable Retention PLATE Cable Retention |
1 | |
| 24 | 8M0221374 |
SCREW (M4 x 12) Truss Head SCREW (M4 x 12) Truss Head |
2 | |
| 25 | 8M0224157 |
TILT TUBE TILT TUBE |
1 | |
| 26 | 8M0224158 |
NUT Tilt Tube NUT Tilt Tube |
1 | |
| 27 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
AR | |
| 28 | 78861 |
ПРОСТАВКА SPACER |
AR | |
| 29 | 29619 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.583 x 0.103) O-RING (.583 x .103) |
AR | |
| 3 | 877799 |
ШАЙБА (0.900 x 1.50 x 0.125) WASHER (.900 x 1.50 x .125) |
1 | |
| 30 | 8M0224159 |
SENSOR Tilt SENSOR Tilt |
1 | |
| 31 | 8M0224172 |
COVER Swivel Bracket Remote Control Models COVER Swivel Bracket Remote Control Models |
1 | |
| 32 | 61319 |
Е-ОБРАЗНОЕ КОЛЬЦО 75e Tiller Handle Models E RING 75e Tiller Handle Models |
1 | |
| 33 | 8M0224170 |
COLLAR 75e Tiller Handle Models COLLAR 75e Tiller Handle Models |
1 | |
| 33 | 8M0224171 |
COLLAR Steering Shaft Remote Control Models COLLAR Steering Shaft Remote Control Models |
1 | |
| 34 | 8M0224168 |
BRAKE 75e Tiller Handle Models BRAKE 75e Tiller Handle Models |
1 | |
| 35 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
2 | |
| 36 | 8M0224145 |
SWIVEL BRACKET SWIVEL BRACKET |
1 | |
| 37 | 8M0219449 |
CABLE RETENTION 90 Degree CABLE RETENTION 90 Degree |
1 | |
| 37 | 8M0219448 |
CABLE RETENTION Straight CABLE RETENTION Straight |
AR | |
| 38 | 8M0224154 |
SCREW (K50 x 16mm) Thread Forming SCREW (K50 x 16mm) Thread Forming |
4 | |
| 39 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
3 | |
| 4 | 8M0179913 |
NUT (M8) NUT (M8) |
2 | |
| 40 | 812708 |
ПРУЖИНА SPRING |
1 | |
| 41 | 65830 |
NYLINER NYLINER |
2 | |
| 42 | 8M0007470 |
РУЧКА KNOB |
1 | |
| 43 | 8M0231824 |
LEVER ASSEMBLY LEVER ASSEMBLY |
1 | |
| 44 | 8M0021914 |
ШТИФТ (0.125 x 30 мм) PIN (.125 x 30 mm) |
1 | |
| 45 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 46 | 893709 |
ШТИФТ PIN |
1 | |
| 47 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 5 | 8M0224140 |
PIN Threaded Tilt Stop PIN Threaded Tilt Stop |
2 | |
| 6 | 8M0224139 |
POWER TILT ASSEMBLY POWER TILT ASSEMBLY |
1 | |
| 7 | 4010725 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
2 | |
| 8 | 8M0224141 |
BUSHING Trim Lower BUSHING Trim Lower |
2 | |
| 9 | 8M0224142 |
PIN Trim Lower PIN Trim Lower |
1 |
