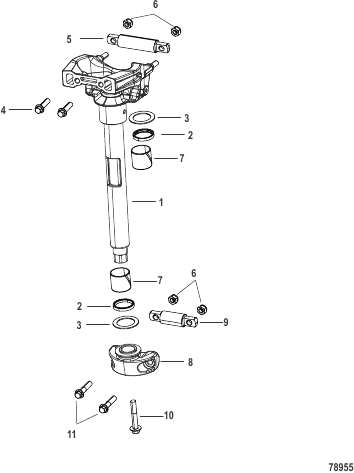

Steering Swivel Bracket
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0224166 |
SHAFT STEERING SHAFT STEERING |
1 | |
| 10 | 4010860 |
ВИНТ Шестигранный фланец (M10 x 60), нержавеющая сталь SCREW (M10 x 60) Hex Flange - Stainless Steel |
1 | |
| 11 | 8M0224162 |
SCREW (M10 x 1.5 x 45) Hex Flange H SCREW (M10 x 1.5 x 45) Hex Flange H |
2 | |
| 2 | 8M0034870 |
УПЛОТНЕНИЕ Поворотная трубка SEAL Swivel Tube |
2 | |
| 3 | 816432 |
УПОРНАЯ ШАЙБА THRUST WASHER |
2 | |
| 4 | 8M0224163 |
SCREW (M10 x 1.5 x 35) Hex Flange H SCREW (M10 x 1.5 x 35) Hex Flange H |
2 | |
| 5 | 8M0224164 |
PIN Upper PIN Upper |
1 | |
| 6 | 8M0224161 |
NUT (M10 x 1.5) Hex Nylon Insert NUT (M10 x 1.5) Hex Nylon Insert |
4 | |
| 7 | 8M0220988 |
BUSHING Swivel Tube Pivot BUSHING Swivel Tube Pivot |
2 | |
| 8 | 8M0224160 |
YOKE Lower YOKE Lower |
1 | |
| 9 | 8M0224165 |
PIN Lower PIN Lower |
1 |
