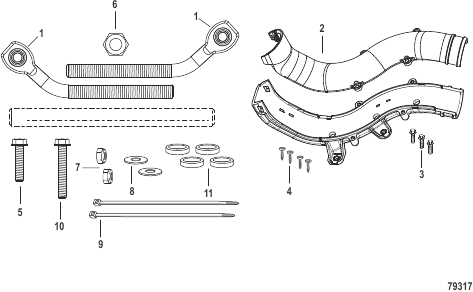

Steering Tie Bar - 8M0230348
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0230348 |
TIE BAR KIT TIE BAR KIT |
1 | |
| 1 | 8M0026167 |
РЫМ-БОЛТ РУЛЕВОГО МЕХАНИЗМА STEERING EYE |
2 | |
| 10 | 8M0231820 |
SCREW .375-24 x 2.2 SCREW .375-24 x 2.2 |
1 | |
| 11 | 8M0231821 |
SPACER SPACER |
4 | |
| 2 | 8M0219448 |
CABLE RETENTION Straight CABLE RETENTION Straight |
1 | |
| 3 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
3 | |
| 4 | 8M0224154 |
SCREW (K50 x 16mm) Thread Forming SCREW (K50 x 16mm) Thread Forming |
4 | |
| 5 | 90072 |
ВИНТ (0.375-24 x 1.750) SCREW (.375-24 x 1.750) |
1 | |
| 6 | 42099 |
ГАЙКА (0.562-18) NUT (.562-18) |
1 | |
| 7 | 8M0204726 |
NUT (.375-24) Brass NUT (.375-24) Brass |
2 | |
| 8 | 8M0042641 |
ШАЙБА (0.390 x 1.00 x 0.06) WASHER (.390 x 1.00 x .06) |
2 | |
| 9 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 |
