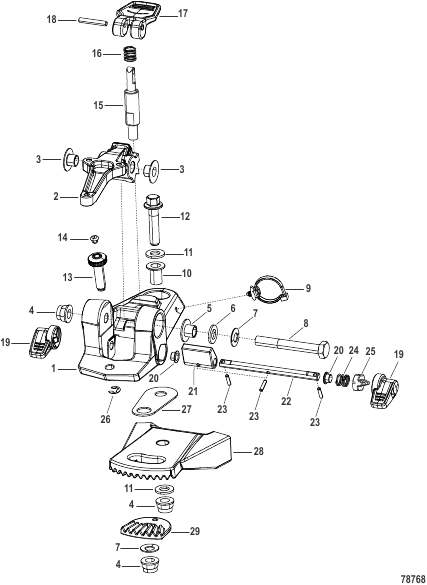

Steering Tiller Bracket 75e Models
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0224040 |
BRACKET Upper BRACKET Upper |
1 | |
| 10 | 8M0224041 |
SPACER SPACER |
1 | |
| 11 | 8M0230038 |
NYLON WASHER NYLON WASHER |
2 | |
| 12 | 8M0103823 |
ВИНТ SCREW (M10 x 45 Hex Flange) |
1 | |
| 13 | 8M0224044 |
DOWN STOP SCREW DOWN STOP SCREW |
1 | |
| 14 | 8M0051399 |
СТОПОР STOPPER |
1 | |
| 15 | 8M0224049 |
SHAFT Yaw SHAFT Yaw |
1 | |
| 16 | 8M0224054 |
SPRING Yaw SPRING Yaw |
1 | |
| 17 | 8M0224050 |
LEVER Yaw LEVER Yaw |
1 | |
| 18 | 8M0224052 |
PIN PIN |
1 | |
| 19 | 8M0204374 |
TILT LEVER Tilt Lock TILT LEVER Tilt Lock |
2 | |
| 2 | 8M0224055 |
TILT HUB TILT HUB |
1 | |
| 20 | 8M0204370 |
BEARING FLANGE (8 MM x 9 MM) BEARING FLANGE (8 MM x 9 MM) |
2 | |
| 21 | 8M0224046 |
LOCKING TAB LOCKING TAB |
1 | |
| 22 | 8M0224045 |
TILT SHAFT TILT SHAFT |
1 | |
| 23 | 8M0214904 |
ROLL PIN ROLL PIN |
3 | |
| 24 | 8M0224384 |
SPRING CAM SPRING CAM |
1 | |
| 25 | 8M0204365 |
TILT LEVER Cam Plunger TILT LEVER Cam Plunger |
1 | |
| 26 | 8M0136060 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 27 | 8M0224053 |
WASHER WASHER |
1 | |
| 28 | 8M0224091 |
BRACKET Lower BRACKET Lower |
1 | |
| 29 | 8M0224051 |
GEAR BASE GEAR BASE |
1 | |
| 3 | 8M0224042 |
FLANGE BUSHING FLANGE BUSHING |
2 | |
| 4 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
3 | |
| 5 | 8M0224043 |
SPACER SPACER |
1 | |
| 6 | 4002319 |
ШАЙБА WASHER |
2 | |
| 7 | 12024 |
ШАЙБА (0.402 x 0.787 x 0.039, Bellevi) WASHER (.402 x .787 x .039 Bellevi) |
2 | |
| 8 | 8M0224047 |
SCREW (M10 x 75) Hex SCREW (M10 x 75) Hex |
1 | |
| 9 | 8M0161118 |
CLIP Cable Tie CLIP Cable Tie |
1 |
