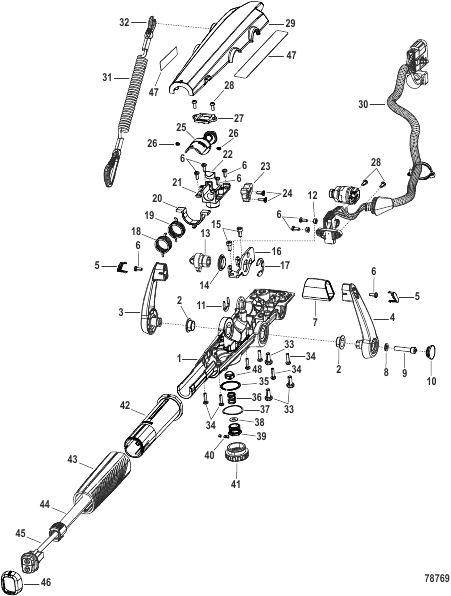

Steering Tiller Handle 75e Models
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0224056 |
TILLER HANDLE Bare TILLER HANDLE Bare |
1 | |
| 10 | 8M0224078 |
PLUG PLUG |
1 | |
| 11 | 8M0224084 |
E-RING E-RING |
1 | |
| 12 | 8M0224090 |
BUSHING BUSHING |
2 | |
| 13 | 8M0224069 |
SHIFT LEVER SHIFT LEVER |
1 | |
| 14 | 8M0224070 |
BUSHING Shift Bracket BUSHING Shift Bracket |
1 | |
| 15 | 8M0224077 |
SCREW (M5 x 0.8 x 10) SCREW (M5 x 0.8 x 10) |
2 | |
| 16 | 8M0224072 |
SHIFT BRACKET SHIFT BRACKET |
1 | |
| 17 | 8M0224076 |
E-RING E-RING |
1 | |
| 18 | 8M0224063 |
SPRING LH Torsion, Throttle SPRING LH Torsion, Throttle |
1 | |
| 19 | 8M0224062 |
SPRING RH Torsion, Throttle SPRING RH Torsion, Throttle |
1 | |
| 2 | 8M0224067 |
BUSHING BUSHING |
2 | |
| 20 | 8M0224071 |
SLIDER SLIDER |
1 | |
| 21 | 8M0224058 |
CRADLE MAGNET HOLDER CRADLE MAGNET HOLDER |
1 | |
| 22 | 8M0224061 |
FRICTION PAD Throttle FRICTION PAD Throttle |
1 | |
| 23 | 8M0161114 |
DETENT ASSEMBLY DETENT ASSEMBLY |
1 | |
| 24 | 8M0161104 |
SCREW (M4 x 0.7 x 12), SOC FLAT HD SCREW (M4 x 0.7 x 12), SOC FLAT HD |
2 | |
| 25 | 8M0224089 |
MAGNET HOLDER Throttle MAGNET HOLDER Throttle |
1 | |
| 26 | 8M0216023 |
SET SCREW (M4 x 7 x 6 MM) SET SCREW (M4 x 7 x 6 MM) |
2 | |
| 27 | 8M0224060 |
RETAINER Detent Pin RETAINER Detent Pin |
1 | |
| 28 | 87775510 |
ВИНТ (M4 x 10) SCREW (M4 x 10) |
4 | |
| 29 | 8M0224083 |
COVER Tiller Handle COVER Tiller Handle |
1 | |
| 3 | 8M0224075 |
LEFT ARM ASSEMBLY LEFT ARM ASSEMBLY |
1 | |
| 30 | 8M0224119 |
HARNESS Tiller Handle HARNESS Tiller Handle |
1 | |
| 31 | 8M0164892 |
LANYARD ASSEMBLY 54 Inches LANYARD ASSEMBLY 54 Inches |
1 | discontinued |
| 32 | 8M0138447 |
ЗАЖИМ Вилка троса, запасная CLIP Lanyard Fork, Spare |
1 | |
| 33 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
3 | |
| 34 | 4001987 |
ВИНТ (M4 x 16) SCREW (M4 x 16) |
6 | |
| 35 | 8M0204378 |
SNAP RING External, 29MM Shaft SNAP RING External, 29MM Shaft |
1 | |
| 36 | 8M0224384 |
SPRING CAM SPRING CAM |
1 | |
| 37 | 8M0221633 |
WASHER Curved, Spring WASHER Curved, Spring |
1 | |
| 38 | 8M0204666 |
WASHER (.203 x .500 x .032) WASHER (.203 x .500 x .032) |
1 | |
| 39 | 8M0224066 |
PLUNGER Throttle Friction Knob PLUNGER Throttle Friction Knob |
1 | |
| 4 | 8M0224073 |
RIGHT ARM ASSEMBLY RIGHT ARM ASSEMBLY |
1 | |
| 40 | 8M0224087 |
MAGNET Throttle Direction MAGNET Throttle Direction |
3 | |
| 41 | 8M0224065 |
THROTTLE-WHEEL THROTTLE-WHEEL |
1 | |
| 42 | 8M0224068 |
INNER GRIP INNER GRIP |
1 | |
| 43 | 8M0224064 |
OUTER GRIP OUTER GRIP |
1 | |
| 44 | 8M0224057 |
THROTTLE TUBE THROTTLE TUBE |
1 | |
| 45 | 8M0224080 |
TRIM SWITCH Tiller TRIM SWITCH Tiller |
1 | |
| 46 | 8M0161124 |
BEZEL Power Trim Switch BEZEL Power Trim Switch |
1 | |
| 47 | 8M0231831 |
DECAL SET Tiller Handle Decal Set contains RNF Decal and Attach Lanyard Decal DECAL SET Tiller Handle Decal Set contains RNF Decal and Attach Lanyard Decal |
1 | |
| 48 | 8M0231833 |
SUPPORT SUPPORT |
1 | |
| 5 | 8M0224088 |
COVER Handle Hub COVER Handle Hub |
2 | |
| 6 | 8M0214905 |
SCREW (M4 x .7 x 10) SCREW (M4 x .7 x 10) |
8 | |
| 7 | 8M0224074 |
MIDDLE HANDLE Shift Handle Top MIDDLE HANDLE Shift Handle Top |
1 | |
| 8 | 8M0224085 |
WASHER (6.6 x 12 x 1.6) WASHER (6.6 x 12 x 1.6) |
1 | |
| 9 | 8M0224086 |
SCREW (M6 x 10 x 1.0) SCREW (M6 x 10 x 1.0) |
1 |
