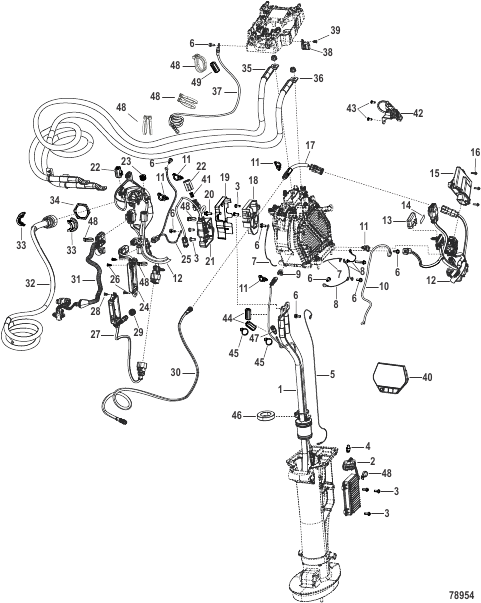

Electrical
Parts (91)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0210754 |
WEATHER CAP Remote Control Models WEATHER CAP Remote Control Models |
1 | |
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Motor Harness Included in Motor Lower Unit Assembly NOT SOLD SEPARATE Motor Harness Included in Motor Lower Unit Assembly |
1 | |
| 10 | 8M0224111 |
HARNESS Ground Cable HARNESS Ground Cable |
1 | |
| 11 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
5 | |
| 12 | 8M0224095 |
HARNESS Outboard HARNESS Outboard |
1 | |
| 13 | 831960 |
КРЫШКА Fuse Weather Cap COVER Fuse Weather Cap |
1 | |
| 14 | 8M0224099 |
DECAL Fuses DECAL Fuses |
1 | |
| 15 | 8M0231615 |
ELECTRONIC CONTROL MODULE 75e Tiller Handle Models ELECTRONIC CONTROL MODULE 75e Tiller Handle Models |
1 | |
| 15 | 8M0231614 |
ELECTRONIC CONTROL MODULE 75e Remote Control Models ELECTRONIC CONTROL MODULE 75e Remote Control Models |
1 | |
| 15 | 8M0231616 |
ELECTRONIC CONTROL MODULE 110e Remote Control Models ELECTRONIC CONTROL MODULE 110e Remote Control Models |
1 | |
| 16 | 8M0221596 |
SCREW (M4 x 0.7 x 16) Flange HD W/P SCREW (M4 x 0.7 x 16) Flange HD W/P |
3 | |
| 17 | 8M0210403 |
HARNESS ADAPTER 6 pos to xlok HARNESS ADAPTER 6 pos to xlok |
1 | |
| 18 | 8M0224019 |
TERMINAL SEPARATOR TERMINAL SEPARATOR |
1 | |
| 19 | 8M0224020 |
COVER Motor Cables Electrical Connection COVER Motor Cables Electrical Connection |
1 | |
| 2 | 8M0204398 |
MODULE DC-DC Converter MODULE DC-DC Converter |
1 | |
| 20 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
1 | |
| 21 | 8M0224118 |
TRIM DRIVER ASSEMBLY TRIM DRIVER ASSEMBLY |
1 | |
| 22 | 8M0204388 |
COVER Fuse, 2 Pin Connector COVER Fuse, 2 Pin Connector |
1 | |
| 23 | 8M0176362 |
CAP Female CAP Female |
1 | |
| 24 | 8M0218249 |
MODULE Isolation Monitor MODULE Isolation Monitor |
1 | |
| 25 | 8M0219928 |
HARNESS Isolation Monitor Module HARNESS Isolation Monitor Module |
1 | |
| 26 | 8M0204503 |
PLUG PLUG |
3 | |
| 27 | 8M0173704 |
SC CONNECT Under Cowl, Single 75e Tiller Handle Models SC CONNECT Under Cowl, Single 75e Tiller Handle Models |
1 | |
| 28 | 8M0204503 |
PLUG 75e Tiller Handle Models PLUG 75e Tiller Handle Models |
1 | |
| 29 | 8M0176362 |
CAP Female 75e Tiller Handle Models CAP Female 75e Tiller Handle Models |
1 | |
| 3 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
7 | |
| 30 | 8M0210404 |
HARNESS Signal Extension .5M Battery CAN HARNESS Signal Extension .5M Battery CAN |
AR | |
| 30 | 8M0210405 |
HARNESS Signal Extension 1M Battery CAN HARNESS Signal Extension 1M Battery CAN |
AR | |
| 30 | 8M0210406 |
HARNESS Signal Extension 2M Battery CAN HARNESS Signal Extension 2M Battery CAN |
AR | |
| 30 | 8M0210407 |
HARNESS Signal Extension 3M Battery CAN HARNESS Signal Extension 3M Battery CAN |
AR | |
| 30 | 8M0210408 |
HARNESS Signal Extension 4M Battery CAN HARNESS Signal Extension 4M Battery CAN |
1 | |
| 30 | 8M0210409 |
HARNESS Signal Extension 5M Battery CAN HARNESS Signal Extension 5M Battery CAN |
AR | |
| 31 | 8M0224119 |
HARNESS Tiller Handle 75e Tiller Handle Models HARNESS Tiller Handle 75e Tiller Handle Models |
1 | |
| 32 | 892451T06 |
HARNESS ASSEMBLY Data (6 Feet) Remote Control Models HARNESS ASSEMBLY Data (6 Feet) Remote Control Models |
AR | |
| 32 | 892451T10 |
HARNESS ASSEMBLY Data (10 Feet) Remote Control Models HARNESS ASSEMBLY Data (10 Feet) Remote Control Models |
1 | |
| 32 | 892451T15 |
HARNESS ASSEMBLY Data (15 Feet) Remote Control Models HARNESS ASSEMBLY Data (15 Feet) Remote Control Models |
AR | |
| 32 | 892451T20 |
HARNESS ASSEMBLY Data (20 Feet) Remote Control Models HARNESS ASSEMBLY Data (20 Feet) Remote Control Models |
AR | |
| 32 | 892451T25 |
ЖГУТ ПРОВОДОВ В СБОРЕ Передача данных (25.00 фт.) Remote Control Models HARNESS ASSEMBLY Data (25 Feet) Remote Control Models |
AR | |
| 32 | 892451T30 |
ЖГУТ ПРОВОДОВ В СБОРЕ Передача данных (30.00 фт.) Remote Control Models HARNESS ASSEMBLY Data (30 Feet) Remote Control Models |
AR | |
| 33 | 8M0188616 |
STRAIN RELIEVER Remote Control Models STRAIN RELIEVER Remote Control Models |
4 | |
| 34 | 889664 |
ГАЙКА (1.500-18), черный нейлон NUT (1.500-18) Black Nylon |
1 | |
| 35 | 8M0223708 |
CABLE, NEGATIVE 3 AWG, 10 Inches (.25m) CABLE, NEGATIVE 3 AWG, 10 Inches (.25m) |
AR | |
| 35 | 8M0223709 |
CABLE, NEGATIVE 3 AWG, 20 Inches (.5m) CABLE, NEGATIVE 3 AWG, 20 Inches (.5m) |
AR | |
| 35 | 8M0223710 |
CABLE, NEGATIVE 3 AWG, 30 Inches (.75m) CABLE, NEGATIVE 3 AWG, 30 Inches (.75m) |
AR | |
| 35 | 8M0223711 |
CABLE, NEGATIVE 3 AWG, 50 Inches (1.25m) CABLE, NEGATIVE 3 AWG, 50 Inches (1.25m) |
AR | |
| 35 | 8M0223712 |
CABLE, NEGATIVE 3 AWG, 70 Inches (1.75m) CABLE, NEGATIVE 3 AWG, 70 Inches (1.75m) |
AR | |
| 35 | 8M0223713 |
CABLE, NEGATIVE 3 AWG, 100 Inches (2.5m) CABLE, NEGATIVE 3 AWG, 100 Inches (2.5m) |
AR | |
| 35 | 8M0223714 |
CABLE, NEGATIVE 3 AWG, 118 Inches (3m) CABLE, NEGATIVE 3 AWG, 118 Inches (3m) |
1 | |
| 35 | 8M0223715 |
CABLE, NEGATIVE 3 AWG, 158 Inches (4m) CABLE, NEGATIVE 3 AWG, 158 Inches (4m) |
AR | |
| 35 | 8M0223716 |
CABLE, NEGATIVE 3 AWG, 196 Inches (5m) CABLE, NEGATIVE 3 AWG, 196 Inches (5m) |
AR | |
| 35 | 8M0223717 |
CABLE, NEGATIVE 3 AWG, 236 Inches (6m) CABLE, NEGATIVE 3 AWG, 236 Inches (6m) |
AR | |
| 36 | 8M0223511 |
CABLE, POSITIVE 3 AWG, 10 Inches (.25m) CABLE, POSITIVE 3 AWG, 10 Inches (.25m) |
AR | |
| 36 | 8M0223512 |
CABLE, POSITIVE 3 AWG, 20 Inches (.5m) CABLE, POSITIVE 3 AWG, 20 Inches (.5m) |
AR | |
| 36 | 8M0223513 |
CABLE, POSITIVE 3 AWG, 30 Inches (.75m) CABLE, POSITIVE 3 AWG, 30 Inches (.75m) |
AR | |
| 36 | 8M0223514 |
CABLE, POSITIVE 3 AWG, 50 Inches (1.25m) CABLE, POSITIVE 3 AWG, 50 Inches (1.25m) |
AR | |
| 36 | 8M0223515 |
CABLE, POSITIVE 3 AWG, 70 Inches (1.75m) CABLE, POSITIVE 3 AWG, 70 Inches (1.75m) |
AR | |
| 36 | 8M0223516 |
CABLE, POSITIVE 3 AWG, 100 Inches (2.5m) CABLE, POSITIVE 3 AWG, 100 Inches (2.5m) |
AR | |
| 36 | 8M0223517 |
CABLE, POSITIVE 3 AWG, 118 Inches (3m) CABLE, POSITIVE 3 AWG, 118 Inches (3m) |
1 | |
| 36 | 8M0223518 |
CABLE, POSITIVE 3 AWG, 158 Inches (4m) CABLE, POSITIVE 3 AWG, 158 Inches (4m) |
AR | |
| 36 | 8M0223519 |
CABLE, POSITIVE 3 AWG, 196 Inches (5m) CABLE, POSITIVE 3 AWG, 196 Inches (5m) |
AR | |
| 36 | 8M0223520 |
CABLE, POSITIVE 3 AWG, 236 Inches (6m) CABLE, POSITIVE 3 AWG, 236 Inches (6m) |
AR | |
| 37 | 8M0218479 |
HARNESS Bonding, 2m Outboard to Boat Bonding HARNESS Bonding, 2m Outboard to Boat Bonding |
1 | |
| 37 | 8M0218480 |
HARNESS Bonding, 4m Outboard to Boat Bonding HARNESS Bonding, 4m Outboard to Boat Bonding |
AR | |
| 38 | 8M0219649 |
DUST CAP 6 POS DT Series Remote Control Models DUST CAP 6 POS DT Series Remote Control Models |
1 | |
| 39 | 8M0204503 |
PLUG Remote Control Models PLUG Remote Control Models |
1 | |
| 4 | 8M0180030 |
CLIP Connector CLIP Connector |
1 | |
| 40 | 8M0215689 |
DISPLAY LCD, Screen 75e Tiller Handle Models DISPLAY LCD, Screen 75e Tiller Handle Models |
1 | |
| 41 | 8M0224096 |
CLIP Zip Tie CLIP Zip Tie |
2 | |
| 42 | 8M0224179 |
TRIM MODULE ASSEMBLY TRIM MODULE ASSEMBLY |
1 | |
| 43 | 8M0142918 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
2 | |
| 44 | 8M0224104 |
FERRITE CORE-SPLIT 40mm LG, 6mm Remote Control Models FERRITE CORE-SPLIT 40mm LG, 6mm Remote Control Models |
2 | |
| 45 | 8M0214940 |
TIE STRAP Remote Control Models TIE STRAP Remote Control Models |
2 | |
| 46 | 8M0224103 |
FERRITE CORE 13mm LG, 26mm I.D, 31 FERRITE CORE 13mm LG, 26mm I.D, 31 |
1 | |
| 47 | 8M0204396 |
HOSE ASSEMBLY Vent Tube HOSE ASSEMBLY Vent Tube |
1 | |
| 48 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
14 | |
| 49 | 8M0232208 |
FERRITE CORE - SPLIT 40mm LG, 12.7mm ID 75 FERRITE CORE - SPLIT 40mm LG, 12.7mm ID 75 |
1 | |
| 5 | 8M0224110 |
HARNESS Ground Cable, Short 75e Models, Control Head to Motor Lower Unit HARNESS Ground Cable, Short 75e Models, Control Head to Motor Lower Unit |
1 | |
| 5 | 8M0224107 |
HARNESS Ground Cable, Long Control Head to Motor Lower Unit HARNESS Ground Cable, Long Control Head to Motor Lower Unit |
1 | |
| 5 | 8M0224109 |
HARNESS Ground Cable, XLong Control Head to Motor Lower Unit HARNESS Ground Cable, XLong Control Head to Motor Lower Unit |
1 | |
| 6 | 40011126 |
ВИНТ (M6 x 13), нержавеющая сталь SCREW (M6 x 13) Stainless Steel |
7 | |
| 7 | 8M0224108 |
HARNESS Ground Cable HARNESS Ground Cable |
1 | |
| 8 | 8M0214907 |
CABLE ASSEMBLY CABLE ASSEMBLY |
3 | |
| 9 | 8M0161118 |
CLIP Cable Tie CLIP Cable Tie |
1 | |
| NS | 832969T05 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – коричневый – 5 A FUSE Mini - Tan - 5 Ampere |
1 | |
| NS | 832969T20 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – желтый – 20 A FUSE Mini - Yellow - 20 Ampere |
1 | |
| NS | 83296930 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – зеленый – 30 A FUSE Mini - Green - 30 Ampere |
1 | |
| NS | 8M0224098 |
FUSE BAG Contains 10 Ampere (Red), 15 Ampere (Blue) FUSE BAG Contains 10 Ampere (Red), 15 Ampere (Blue) |
1 | |
| NS | 8M0204388 |
COVER Fuse, 2 Pin Connector COVER Fuse, 2 Pin Connector |
1 | |
| NS | 8M0219650 |
WEATHER CAP 75e Tiller Handle Models WEATHER CAP 75e Tiller Handle Models |
1 | |
| NS | 893388A01 |
ПРОБКА Резистор 2 вывода, 120 Ом (CAN 1, 2 и 3) CAP Resistor - 2 Pin, 120 Ohm (CAN 1, 2 and 3) |
1 | |
| NS | 8M0230986 |
WEATHER CAP Remote Control Models WEATHER CAP Remote Control Models |
1 |
