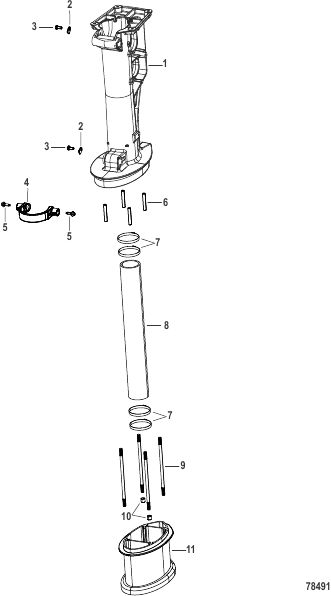

Control Head Lower
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0224026 |
MAIN SUPPORT BRACKET Lower 75e Short Models MAIN SUPPORT BRACKET Lower 75e Short Models |
1 | |
| 1 | 8M0224027 |
MAIN SUPPORT BRACKET Lower Long/XLong Models MAIN SUPPORT BRACKET Lower Long/XLong Models |
1 | |
| 10 | 8M0224377 |
BUSHING Spacer XLong Models BUSHING Spacer XLong Models |
2 | |
| 11 | 8M0224035 |
SPACER XLong Models SPACER XLong Models |
1 | |
| 2 | 8M0224030 |
WASHER Mount Retention WASHER Mount Retention |
2 | |
| 3 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
2 | |
| 4 | 8M0224029 |
BUMPER SUPPORT Cowl BUMPER SUPPORT Cowl |
1 | |
| 5 | 8M0230980 |
SCREW (M6 x 14) Hex Flange B SCREW (M6 x 14) Hex Flange B |
2 | |
| 6 | 8M0224028 |
STUD (M8 x 1.25 x 50) Double End STUD (M8 x 1.25 x 50) Double End |
4 | |
| 7 | 888988004 |
ЗАЖИМ (62.0 мм) CLAMP (62.0 mm) |
4 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Conduit Included in the Motor Lower Unit Assembly NOT SOLD SEPARATE Conduit Included in the Motor Lower Unit Assembly |
1 | |
| 9 | 8M0224036 |
STUD (M8 x 1.25 x 185) XLong Models STUD (M8 x 1.25 x 185) XLong Models |
4 |
