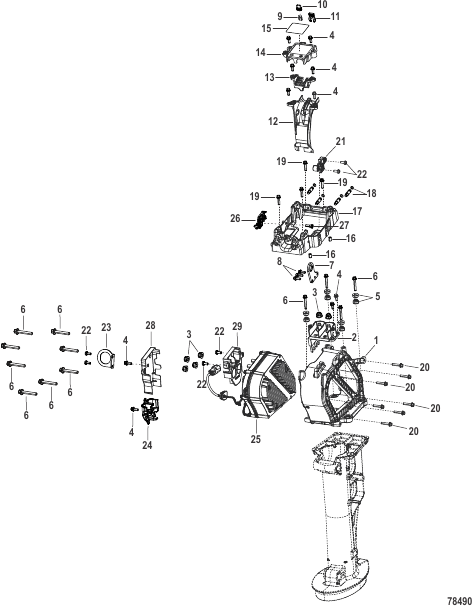

Control Head Upper
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0224007 |
BRACKET Support BRACKET Support |
1 | |
| 10 | 8M0047886 |
HOLDER Spare Fuse HOLDER Spare Fuse |
1 | |
| 11 | 8M0138447 |
ЗАЖИМ Вилка троса, запасная CLIP Lanyard Fork, Spare |
1 | |
| 12 | 8M0224022 |
TRAY ASSEMBLY Harness Cable TRAY ASSEMBLY Harness Cable |
1 | |
| 13 | 8M0224024 |
BRACKET BRACKET |
1 | |
| 14 | 8M0224018 |
COVER Battery Terminals COVER Battery Terminals |
1 | |
| 15 | 8M0224021 |
DECAL Terminal Cover DECAL Terminal Cover |
1 | |
| 16 | 892228 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 17 | 8M0224008 |
BRACKET Support Main Upper BRACKET Support Main Upper |
1 | |
| 18 | 8M0224009 |
STUD ORING ASSEMBLY STUD ORING ASSEMBLY |
4 | |
| 19 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
4 | |
| 2 | 8M0224013 |
BUSBAR BUSBAR |
1 | |
| 20 | 8M0103808 |
ВИНТ (M6 x 30 ММ), нержавеющая сталь SCREW (M6 x 30 mm) Stainless Steel |
7 | |
| 21 | 8M0224017 |
BRACKET Connector Holder BRACKET Connector Holder |
1 | |
| 22 | 8M0177539 |
SCREW (M6 x 14) Torx Pan HD SCREW (M6 x 14) Torx Pan HD |
6 | |
| 23 | 8M0224010 |
BRACKET 14 Pin Mounting BRACKET 14 Pin Mounting |
1 | |
| 24 | 8M0224023 |
COVER Cable COVER Cable |
1 | |
| 25 | 8M0224012 |
POWER ENTRY MODULE ASSEMBLY POWER ENTRY MODULE ASSEMBLY |
1 | superseded |
| 26 | 8M0224016 |
BRACKET Fuse Holder BRACKET Fuse Holder |
1 | |
| 27 | 8M0204356 |
SCREW Shoulder M6 SCREW Shoulder M6 |
1 | |
| 28 | 8M0224020 |
COVER Motor Cables Electrical Connection COVER Motor Cables Electrical Connection |
1 | |
| 29 | 8M0224019 |
TERMINAL SEPARATOR TERMINAL SEPARATOR |
1 | |
| 3 | 8M0142743 |
ГАЙКА (M10 x 1.5) NUT (M10 x 1.5) |
6 | |
| 4 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
10 | |
| 5 | 8M0219672 |
ISOLATOR ASSEMBLY ISOLATOR ASSEMBLY |
8 | |
| 6 | 8M0103809 |
ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel |
12 | |
| 7 | 8M0224014 |
LIFTING EYE LIFTING EYE |
1 | |
| 8 | 8M0224725 |
SCREW (M6 x 16) Hex Flange Screw SCREW (M6 x 16) Hex Flange Screw |
3 | |
| 9 | 832969T20 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – желтый – 20 A FUSE Mini - Yellow - 20 Ampere |
1 |
