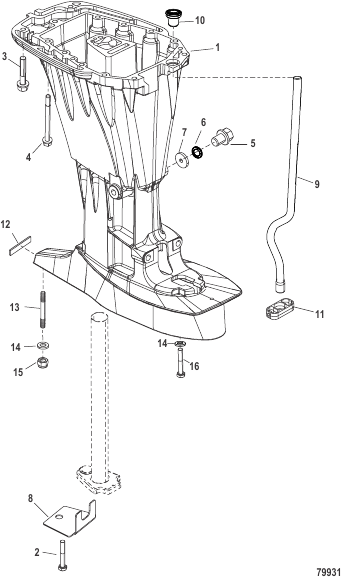

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
852421T08 |
HOUSING Driveshaft - Short
|
1 |
|
| 10 |
8M0151041 |
SEAL WATER TUBE Upper
|
1 |
|
| 11 |
828529 |
GUIDE
|
1 |
|
| 12 |
8M0043364 |
BUMPER
|
1 |
|
| 13 |
823984 |
STUD (M10 x 50)
|
1 |
|
| 14 |
8M0214963 |
WASHER
|
5 |
|
| 15 |
40140 |
NUT (M10)
|
1 |
|
| 16 |
4000380 |
SCREW (M10 x 45)
|
4 |
|
| 2 |
1993325 |
SCREW (M10 x 25 MM)
|
1 |
|
| 3 |
88960845 |
SCREW (M8 x 45)
|
5 |
|
| 4 |
824459110 |
SCREW (M8 x 110) Stainless Steel
|
8 |
|
| 5 |
8288181 |
PLUG Drain
|
1 |
|
| 6 |
8M0188221 |
SEAL
|
1 |
|
| 7 |
826276 |
BUMPER
|
1 |
|
| 8 |
8M4503628 |
PLATE Driveshaft Housing
|
1 |
|
| 9 |
897970A01 |
TUBE/SEAL KIT Water - Short
|
1 |
|
