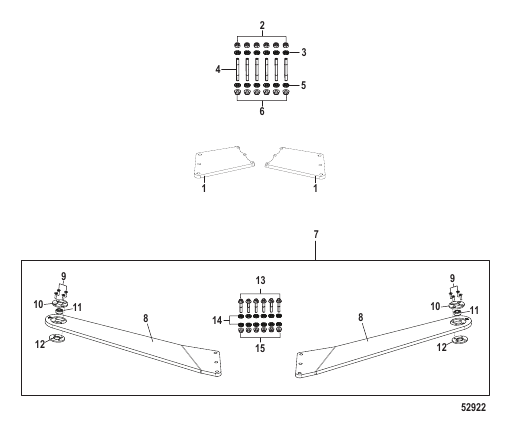

Steering Plate
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0050941 |
ПЛАСТИНА РУЛЕВОГО МЕХАНИЗМА STEERING PLATE |
2 | |
| 10 | 8M0233290 |
PLATE Steering Upper PLATE Steering Upper |
2 | |
| 11 | 8M0233291 |
BEARING BEARING |
2 | |
| 12 | 8M0233292 |
PLATE Steering Lower PLATE Steering Lower |
2 | |
| 13 | 8M0038368 |
ВИНТ M8 x 40 SCREW M8 x 40 |
6 | |
| 14 | 847541 |
ШАЙБА WASHER |
12 | |
| 15 | 826365 |
ГАЙКА (M8) NUT (M8) |
6 | |
| 2 | 401378 |
ГАЙКА (M8) NUT (M8) |
6 | |
| 3 | 855941 |
ШАЙБА (0.323 x 0.590 x 0.112), нержавеющая сталь WASHER (.323 x .590 x .112) Stainless Steel |
6 | |
| 4 | 8M0033750 |
ШПИЛЬКА M8 x 1.25 x 135 STUD M8 x 1.25 x 135 |
6 | |
| 5 | 847541 |
ШАЙБА WASHER |
6 | |
| 6 | 826365 |
ГАЙКА (M8) NUT (M8) |
6 | |
| 7 | 8M8022230 |
КОМПЛЕКТ ПЛАСТИНЫ РУЛЕВОГО МЕХАНИЗМА STEERING PLATE KIT |
1 | |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Steering Arm, Port and Starboard NOT SOLD SEPARATE Steering Arm, Port and Starboard |
2 | |
| 9 | 8M0053730 |
SCREW (10-32 x 6.25) Flat Head SCREW (10-32 x 6.25) Flat Head |
8 |
