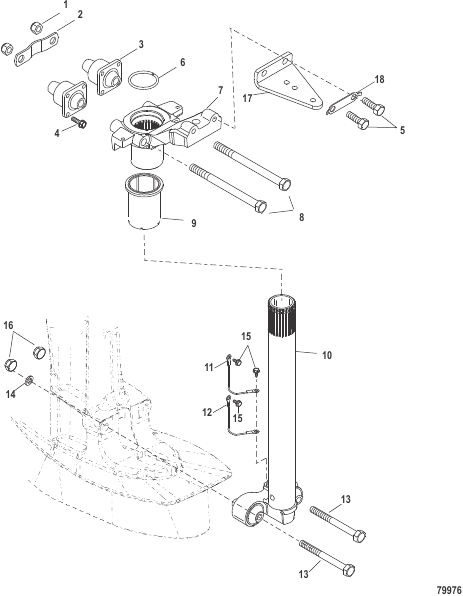

Steering Arm
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 896963 |
ГАЙКА (M12) NUT (M12) |
2 | |
| 10 | 8M0219912 |
SWIVEL TUBE SWIVEL TUBE |
1 | |
| 11 | 88238T01 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | |
| 12 | 8M0207768 |
CABLE ASSEMBLY CABLE ASSEMBLY |
1 | |
| 13 | 8M0103829 |
SCREW SCREW |
2 | |
| 14 | 4002319 |
ШАЙБА WASHER |
2 | |
| 15 | 878607 |
ВИНТ (№10-16 x 0.375) SCREW (#10-16 x .375) |
3 | |
| 16 | 40140 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 17 | 8M0184092 |
BRACKET Ride-Guide BRACKET Ride-Guide |
1 | |
| 18 | 8M0009820 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 2 | 893773002 |
СКОБА Верхнее крепление STRAP Upper Mount |
1 | |
| 3 | 891537 |
КРЕПЛЕНИЕ Верхняя часть MOUNT Upper |
2 | |
| 4 | 8M0204741 |
SCREW (M6 x 1.0 x 20) Hex Wash HD SCREW (M6 x 1.0 x 20) Hex Wash HD |
8 | |
| 5 | 4000377 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
2 | |
| 6 | 89531 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 7 | 8M0118183 |
ARM Рулевой механизм ARM Steering |
1 | |
| 8 | 898835001 |
ВИНТ (M12 x 154) SCREW (M12 x 154) |
2 | |
| 9 | 8279973 |
ПРОСТАВКА SPACER |
1 |
