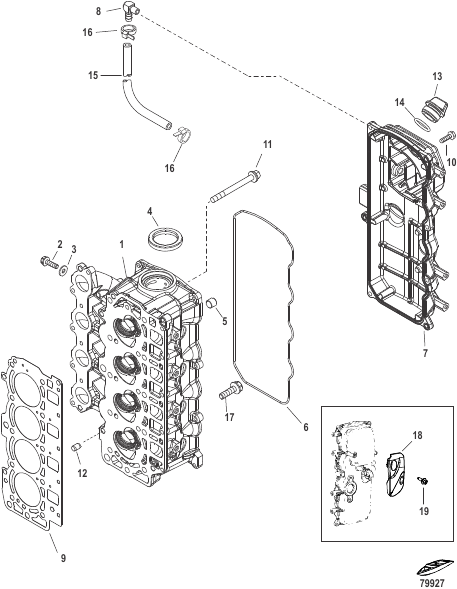

Cylinder Head
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0205507 |
CYLINDER HEAD ASSEMBLY Complete CYLINDER HEAD ASSEMBLY Complete |
1 | |
| - | 883599A02 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | |
| - | 893678T03 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ SHORT BLOCK |
1 | |
| 1 | 8M0119522 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ Основной CYLINDER HEAD ASSEMBLY Basic |
1 | |
| 10 | 8M0204741 |
SCREW (M6 x 1.0 x 20) Hex Wash HD SCREW (M6 x 1.0 x 20) Hex Wash HD |
7 | |
| 11 | 893747095 |
SCREW (M9 X 95) SCREW (M9 X 95) |
10 | |
| 12 | 825010 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 13 | 859578A1 |
УЗЕЛ ПРОБКИ Масло PLUG ASSEMBLY Oil |
1 | |
| 14 | 8M0204673 |
O-Ring .921 x .139 O-Ring .921 x .139 |
1 | |
| 15 | 77653101 |
РУКАВ (Общая длина 48.00") Cut to 19 Inches - To Fitting in Adaptor Plate HOSE (48.00 Inches Bulk) Cut to 19 Inches - To Fitting in Adaptor Plate |
1 | |
| 16 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 17 | 893745025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
5 | |
| 18 | 8M0026326 |
ОТРАЖАТЕЛЬ Кожух DEFLECTOR Cowl |
1 | |
| 19 | 8M0012661 |
ВИНТ SCREW M6 x 14 HEX FLG SS |
2 | |
| 2 | 4000325 |
ВИНТ (M6 x 8) SCREW (M6 x 8) |
4 | |
| 3 | 859768 |
ШАЙБА WASHER |
4 | |
| 4 | 893549 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 5 | 875209 |
ЗАГЛУШКА ТРУБЫ PIPE PLUG |
8 | |
| 6 | 8M0011870 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 7 | 8M0174400 |
COVER Cylinder Head COVER Cylinder Head |
1 | |
| 8 | 8M0181665 |
FITTING Elbow, 90 Degree FITTING Elbow, 90 Degree |
1 | |
| 9 | 8M0118179 |
ПРОКЛАДКА ГОЛОВКИ HEAD GASKET |
1 |
