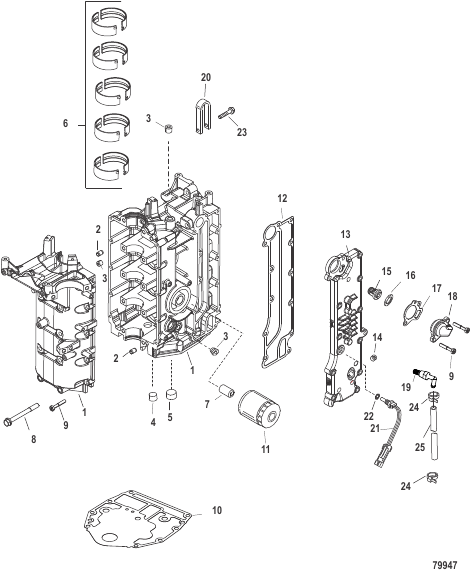

Cylinder Block and Crankcase
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 883599A02 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | |
| 1 | 893678T03 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ SHORT BLOCK |
1 | |
| 10 | 8M0213112 |
GASKET Cylinder Block GASKET Cylinder Block |
1 | |
| 11 | 8M0162829 |
FILTER Oil FILTER Oil |
1 | |
| 12 | 8M0224375 |
GASKET Exhaust Cover GASKET Exhaust Cover |
1 | |
| 13 | 8M0188836 |
COVER Exhaust COVER Exhaust |
1 | |
| 14 | 479452 |
ПРОБКА PLUG |
1 | |
| 15 | 8M0223832 |
THERMOSTAT 120 Degree THERMOSTAT 120 Degree |
1 | |
| 16 | 8M0188252 |
GASKET Thermostat GASKET Thermostat |
1 | |
| 17 | 8M0177107 |
GASKET Thermostat Cover GASKET Thermostat Cover |
1 | |
| 18 | 8M0188835 |
COVER Thermostat COVER Thermostat |
1 | |
| 19 | 8M0021770 |
СЕТЧАТЫЙ ФИЛЬТР Вода STRAINER Water |
1 | |
| 2 | 825010 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 20 | 893697 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 21 | 8M0214984 |
SENSOR Temperature SENSOR Temperature |
1 | |
| 22 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
1 | |
| 23 | 857139 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
1 | |
| 24 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 25 | 8M0108349 |
РУКАВ (Общая длина 70") Cut to 10 Inches - To VST Cooler HOSE (70 Inches Bulk) Cut to 10 Inches - To VST Cooler |
1 | |
| 3 | 479452 |
ПРОБКА PLUG |
3 | |
| 4 | 889567 |
ПРОБКА (0.500-14) PLUG (.500-14) |
1 | |
| 5 | 416223 |
ПРОБКА Труба (0.750-14) PLUG Pipe (.750-14) |
1 | |
| 6 | 893631 |
ПОДШИПНИК Главн. – коричневый BEARING Main - Brown |
10 | |
| 6 | 893631001 |
ПОДШИПНИК Главн. – черный BEARING Main - Black |
10 | |
| 6 | 893631002 |
ПОДШИПНИК Главн. – синий BEARING Main - Blue |
10 | |
| 7 | 822625 |
НИППЕЛЬ (M20) NIPPLE (M20) |
1 | |
| 8 | 82506182 |
ВИНТ (M8 x 82) SCREW (M8 x 82) |
10 | discontinued |
| 9 | 8M0205943 |
SCREW (M6 x 35) SCREW (M6 x 35) |
22 |
