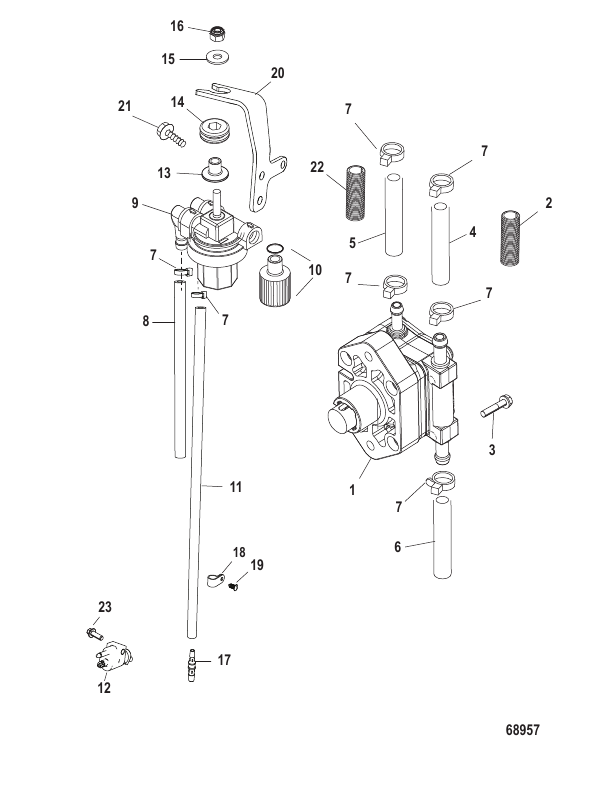

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0141827 |
PUMP ASSEMBLY PUMP ASSEMBLY |
1 | |
| 10 | 8M0219171 |
FUEL FILTER ELEMENT FUEL FILTER ELEMENT |
1 | |
| 11 | 8M0108355 |
РУКАВ (Общая длина 57") Cut to 34 Inches HOSE (57 Inches Bulk) Cut to 34 Inches |
1 | |
| 12 | 8M0148584 |
FUEL CONNECTOR Handle FUEL CONNECTOR Handle |
1 | |
| 13 | 856954 |
ВТУЛКА BUSHING |
1 | |
| 14 | 8M0190980 |
GROMMET GROMMET |
1 | |
| 15 | 8M0214930 |
WASHER 6.60 x 17.0 x 1.5 WASHER 6.60 x 17.0 x 1.5 |
1 | |
| 16 | 401196 |
ГАЙКА (M6) NUT (M6) |
1 | |
| 17 | 8M0022500 |
ФИТИНГ Редуктор FITTING Reducer |
1 | |
| 18 | 8M0022218 |
ЗАЖИМ CLAMP |
4 | |
| 19 | 8M0022331 |
ВИНТ Храповик SCREW Ratchet |
4 | |
| 2 | 828547T1 |
КАБЕЛЕПРОВОД (Внутренний диаметр 0.500 x общая длина 3.00 фт.) Cut to 26 Inches CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) Cut to 26 Inches |
1 | |
| 20 | 8M0184093 |
BRACKET Fuel Filter BRACKET Fuel Filter |
1 | |
| 21 | 40011126 |
ВИНТ (M6 x 13), нержавеющая сталь SCREW (M6 x 13) Stainless Steel |
2 | |
| 22 | 828547633 |
КАБЕЛЕПРОВОД (Внутренний диаметр 0.620 x общая длина 3.00 фт.) CONDUIT (.620 Inside Diameter x 3.00 Feet Bulk) |
1 | |
| 23 | 88552535 |
ВИНТ (M6 x 35 мм), нержавеющая сталь SCREW (M6 x 35 MM) Stainless Steel |
1 | |
| 3 | 82684430 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
2 | |
| 4 | 8M0108349 |
РУКАВ (Общая длина 70") To VST Cooler - Cut to 37 Inches HOSE (70 Inches Bulk) To VST Cooler - Cut to 37 Inches |
1 | |
| 5 | 8M0108355 |
РУКАВ (Общая длина 57") To Vapor Separator Cover - Cut to 16.5 Inches HOSE (57 Inches Bulk) To Vapor Separator Cover - Cut to 16.5 Inches |
1 | |
| 6 | 8M0108349 |
РУКАВ (Общая длина 70") To Telltale - Cut to 6 Inches HOSE (70 Inches Bulk) To Telltale - Cut to 6 Inches |
1 | |
| 7 | 888988023 |
ЗАЖИМ CLAMP |
AR | |
| 8 | 8M0108355 |
РУКАВ (Общая длина 57") Cut to 8 Inches HOSE (57 Inches Bulk) Cut to 8 Inches |
1 | |
| 9 | 879884T |
ФИЛЬТР В СБОРЕ Топливо FILTER ASSEMBLY Fuel |
1 |
