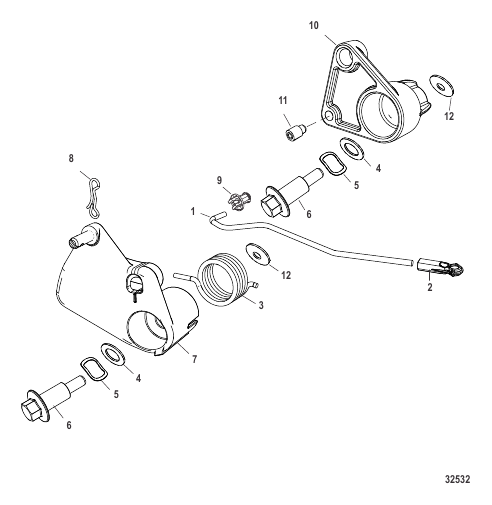

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0006021 | LINK ASSEMBLY Throttle | 1 | |
| 10 | 8M0008317 | FOLLOWER Cam | 1 | |
| 11 | 8M0037159 | ROLLER | 1 | |
| 12 | 897936 | WASHER | 2 | |
| 2 | 8M0084742 | SOCKET | 1 | |
| 3 | 897535005 | SPRING Throttle Cam Return | 1 | |
| 4 | 897937 | WASHER | 2 | |
| 5 | 898093 | WASHER Wave | 2 | |
| 6 | 8M0232595 | BOLT Shoulder | 2 | |
| 7 | 8M0021603 | CAM Throttle | 1 | |
| 8 | 8M0001157 | PIN Bow Tie Clip | 1 | |
| 9 | 8M0215006 | BUSHING Swivel | 1 |
