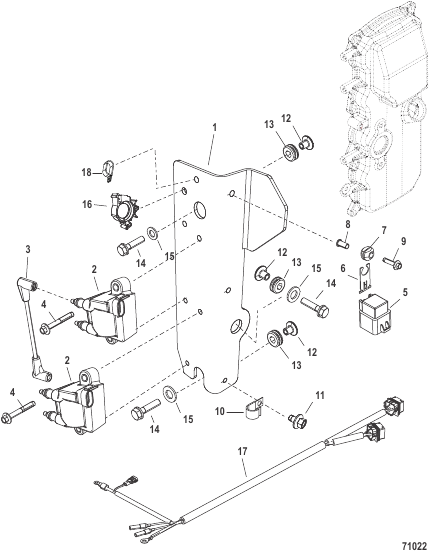

Ignition Coil Mounting
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0232592 |
COIL PLATE COIL PLATE |
1 | |
| 10 | 8M0024808 |
УГЛОВОЙ ЗАЖИМ J-CLIP |
1 | |
| 11 | 82129110 |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
1 | |
| 12 | 856954 |
ВТУЛКА BUSHING |
3 | |
| 13 | 8M0190980 |
GROMMET GROMMET |
3 | |
| 14 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
3 | |
| 15 | 8M0214930 |
WASHER 6.60 x 17.0 x 1.5 WASHER 6.60 x 17.0 x 1.5 |
3 | |
| 16 | 898454 |
ЗАЖИМ (19 мм) CLIP (19 mm) |
1 | |
| 17 | 826802T36 |
ЖГУТ ПРОВОДОВ В СБОРЕ Дифферент HARNESS ASSEMBLY Trim |
1 | |
| 18 | 8M0108769 |
ЗАЖИМ CLIP P |
1 | |
| 2 | 8M0044991 |
КАТУШКА ЗАЖИГАНИЯ Двойной вывод катушки зажигания IGNITION COIL Ignition Dual Output |
2 | |
| 3 | 881908T |
КОМПЛЕКТ КАБЕЛЕЙ CABLE SET |
1 | |
| 4 | 82129130 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
4 | |
| 5 | 8M0207773 |
RELAY ASSEMBLY Trim RELAY ASSEMBLY Trim |
3 | |
| 6 | 8M0207771 |
BRACKET Mounting BRACKET Mounting |
1 | |
| 7 | 8M0207785 |
GROMMET GROMMET |
1 | |
| 8 | 8M0214955 |
BUSHING BUSHING |
3 | |
| 9 | 82129125 |
ВИНТ (M6 x 25 мм) SCREW (M6 x 25 MM) |
1 |
