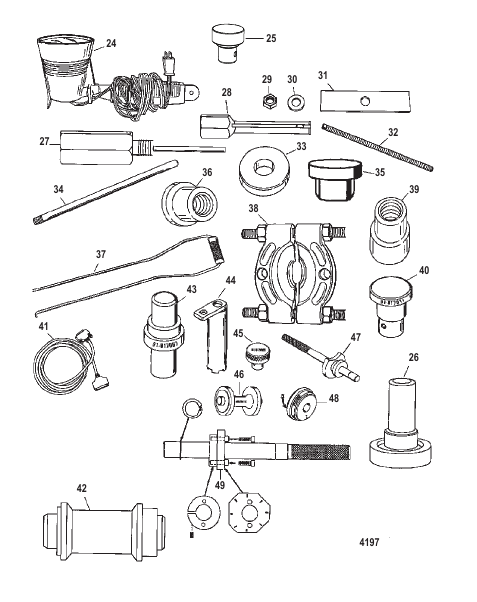

| # | Part Number | Description | Qty | Status |
|---|
| - |
31229A7 |
PULLER KIT Bearing
|
1 |
|
| 25 |
877321A1 |
INSTALLATION TOOL Bearing
|
1 |
|
| 26 |
13945 |
INSTALLATION TOOL Bearing
|
1 |
|
| 27 |
NSS |
NOT SOLD SEPARATE Expanding Rod (P/N-CG-41-11)
|
1 |
|
| 28 |
NSS |
NOT SOLD SEPARATE Collet (P/N-CG-41-14)
|
1 |
|
| 29 |
24156 |
NUT (.625-18)
|
1 |
|
| 30 |
34961 |
WASHER
|
1 |
|
| 31 |
29310 |
PLATE
|
1 |
|
| 32 |
31229 |
SHAFT
|
1 |
|
| 33 |
36571T |
PILOT WASHER
|
1 |
|
| 34 |
37323 |
DRIVER ROD TOOL Needle Bearings
|
1 |
|
| 35 |
15755T |
NEEDLE BEARING DRIVER
|
1 |
|
| 36 |
36569T |
DRIVE HEAD TOOL
|
1 |
|
| 37 |
27780 |
PULLER
|
1 |
|
| 38 |
37241 |
PULLER PLATE Universal
|
1 |
disc.
|
| 39 |
37312T |
DRIVESHAFT BEARING DRIVER
|
1 |
|
| 40 |
817011T |
INSTALLER TOOL Needle Bearing
|
1 |
|
| 41 |
825003A1 |
CABLE ASSEMBLY DDT 10 Feet
|
1 |
|
| 42 |
13949 |
DRIVER TOOL Oil Seal
|
1 |
|
| 43 |
817007T |
INSTALLER TOOL Seal
|
1 |
|
| 44 |
43506T |
RETAINING TOOL Bearing
|
1 |
|
| 45 |
817005 |
INSTALLER TOOL Bearing
|
1 |
|
| 46 |
817006 |
INSTALLER TOOL Water Pump Base Seal
|
1 |
|
| 47 |
817008A2 |
LOCATION TOOL Pinion Gear
|
1 |
|
| 48 |
817009T |
DRIVER TOOL Bearing Cup
|
1 |
|
| 49 |
12349A05 |
TOOL Pinion Locating
|
1 |
|
