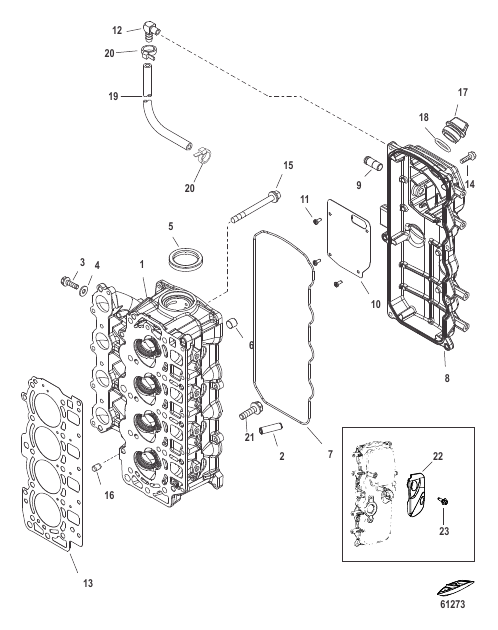

| # | Part Number | Description | Qty | Status |
|---|
| - |
893505T05 |
CYLINDER HEAD ASSEMBLY Complete
|
1 |
disc.
|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| - |
893678T03 |
SHORT BLOCK (Does Not Include Cylinder Head)
|
1 |
|
| 1 |
893505T06 |
CYLINDER HEAD ASSEMBLY Basic
|
1 |
disc.
|
| 10 |
NSS |
NOT SOLD SEPARATE Baffle Plate
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Screw
|
1 |
|
| 12 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 13 |
8M0118179 |
HEAD GASKET
|
1 |
|
| 14 |
8M4503518 |
SCREW (M6 X 1.0 X 20)
|
7 |
superseded
|
| 15 |
82503395 |
SCREW (M9 x 95)
|
10 |
disc.
|
| 16 |
825010 |
PIN Dowel
|
2 |
|
| 17 |
859578A1 |
PLUG ASSEMBLY Oil
|
1 |
|
| 18 |
90196 |
O-RING (.921 x .139)
|
1 |
superseded
|
| 19 |
77653101 |
HOSE (48.00 Inches Bulk) Cut to 19 Inches - To Fitting in Adaptor Plate
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Guide
|
8 |
|
| 20 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 21 |
893745025 |
SCREW (M6 x 25)
|
5 |
|
| 22 |
8M0026326 |
DEFLECTOR Cowl
|
1 |
|
| 23 |
8M0012661 |
SCREW M6 x 14 HEX FLG SS
|
2 |
|
| 3 |
4000325 |
SCREW (M6 x 8)
|
4 |
|
| 4 |
859768 |
WASHER
|
4 |
|
| 5 |
893549 |
SEAL Oil
|
1 |
|
| 6 |
875209 |
PIPE PLUG
|
8 |
|
| 7 |
8M0011870 |
SEAL
|
1 |
|
| 8 |
893694T02 |
COVER ASSEMBLY
|
1 |
superseded
|
| 9 |
NSS |
NOT SOLD SEPARATE Breather Pipe
|
1 |
|
