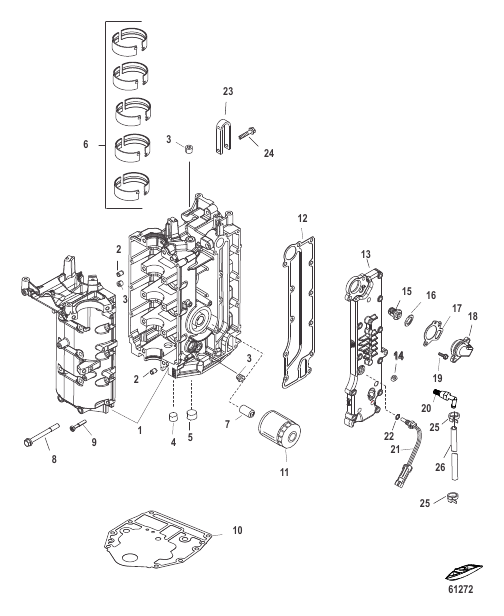

| # | Part Number | Description | Qty | Status |
|---|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| - |
893678T03 |
SHORT BLOCK (Does not include cylinder head)
|
1 |
|
| 1 |
893502T02 |
CYLINDER BLOCK ASSEMBLY
|
1 |
disc.
|
| 10 |
892319001 |
GASKET
|
1 |
superseded
|
| 11 |
8M0162829 |
FILTER Oil
|
1 |
|
| 12 |
857078 |
GASKET
|
1 |
superseded
|
| 13 |
8M0118194 |
COVER Exhaust
|
1 |
superseded
|
| 14 |
479452 |
PLUG
|
1 |
|
| 15 |
8M0117413 |
THERMOSTAT
|
1 |
superseded
|
| 16 |
887978 |
GASKET
|
1 |
|
| 17 |
824853 |
GASKET
|
1 |
superseded
|
| 18 |
8M0008243 |
COVER Thermostat
|
1 |
superseded
|
| 19 |
88348935 |
SCREW (M6 x 35)
|
12 |
superseded
|
| 2 |
825010 |
PIN Dowel
|
2 |
|
| 20 |
8M0021770 |
STRAINER Water
|
1 |
|
| 21 |
889575 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 22 |
627021 |
O-RING (.301 x .070)
|
1 |
|
| 23 |
893697 |
LIFTING EYE
|
1 |
|
| 24 |
857139 |
SCREW (M8 x 35)
|
1 |
|
| 25 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 26 |
8M0108349 |
HOSE (70 Inches Bulk) Cut to 10 Inches - To VST Cooler
|
1 |
|
| 3 |
479452 |
PLUG
|
3 |
|
| 4 |
889567 |
PLUG (.500-14)
|
1 |
|
| 5 |
416223 |
PLUG Pipe (.750-14)
|
1 |
|
| 6 |
893631 |
BEARING Main - Brown
|
10 |
|
| 6 |
893631001 |
BEARING Main - Black
|
10 |
|
| 6 |
893631002 |
BEARING Main - Blue
|
10 |
|
| 7 |
822625 |
NIPPLE (M20)
|
1 |
|
| 8 |
82506182 |
SCREW (M8 x 82)
|
10 |
disc.
|
| 9 |
88348935 |
SCREW (M6 x 35)
|
10 |
superseded
|
