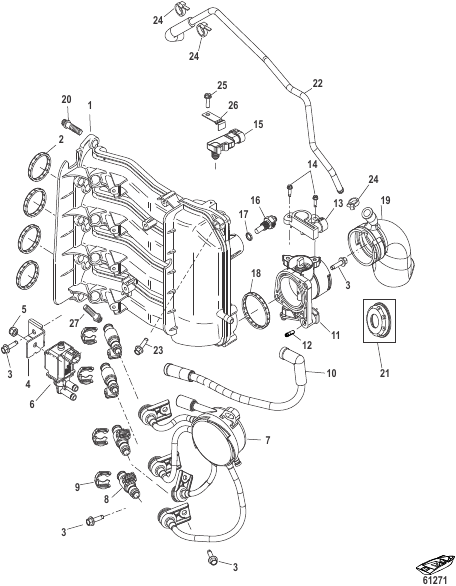

| # | Part Number | Description | Qty | Status |
|---|
| - |
877829T06 |
MANIFOLD ASSEMBLY Intake - Complete
|
1 |
|
| - |
883597 |
O-RING KIT Injector Upper
|
1 |
|
| - |
883598 |
O-RING KIT Injector Lower
|
1 |
|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| 1 |
877829T01 |
MANIFOLD Intake
|
1 |
|
| 10 |
877831A1 |
HOSE
|
1 |
|
| 11 |
877831A02 |
THROTTLE BODY ASSEMBLY
|
1 |
|
| 12 |
8M0000578 |
SCREW Adjustment
|
1 |
|
| 13 |
8M0125617 |
SENSOR Position
|
1 |
|
| 14 |
881060 |
SCREW
|
2 |
|
| 15 |
854445 |
SENSOR MAP
|
1 |
|
| 16 |
8M0148668 |
SENSOR ASSEMBLY
|
1 |
|
| 17 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 18 |
879867 |
GASKET
|
1 |
|
| 19 |
893521 |
ATTENUATOR
|
1 |
|
| 2 |
879866 |
GASKET SET (Contains 4 Gaskets)
|
1 |
|
| 20 |
8248326 |
SCREW (M6 x 25 MM)
|
8 |
|
| 21 |
8831483 |
RESTRICTOR
|
1 |
|
| 22 |
8M0113740 |
HOSE ASSEMBLY Breather
|
1 |
|
| 23 |
82684430 |
SCREW (M6 x 30)
|
1 |
|
| 24 |
850181 |
TIE STRAP (11.750 Inches)
|
3 |
|
| 25 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 26 |
8M0007495 |
RETAINER
|
1 |
|
| 27 |
8248326 |
SCREW (M6 x 25 MM)
|
2 |
|
| 3 |
881059 |
SCREW
|
9 |
|
| 4 |
877834 |
BRACKET
|
1 |
|
| 5 |
401366 |
NUT (M6) Stainless Steel
|
1 |
|
| 6 |
877805T |
SOLENOID VALVE
|
1 |
|
| 7 |
879887T |
TFI SYSTEM
|
1 |
|
| 8 |
892123002 |
INJECTOR
|
4 |
|
| 9 |
883460 |
CLIP
|
4 |
|
