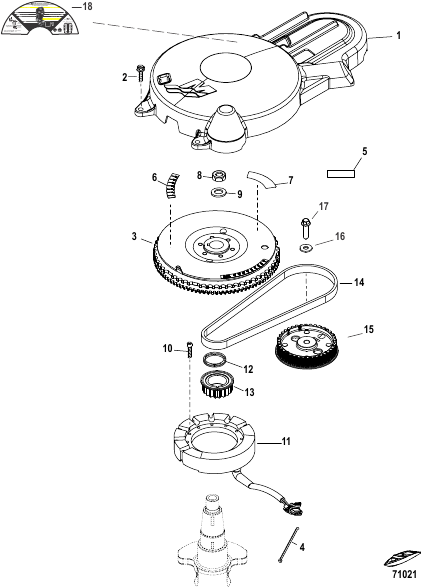

| # | Part Number | Description | Qty | Status |
|---|
| - |
893678T03 |
SHORT BLOCK
|
1 |
|
| 1 |
859284T2 |
FLYWHEEL COVER
|
1 |
|
| 10 |
4013930 |
SCREW (M5 x 30)
|
3 |
|
| 11 |
878143T05 |
STATOR
|
1 |
|
| 12 |
834838 |
LOAD RING
|
1 |
|
| 13 |
833102T |
GEAR Drive
|
1 |
|
| 14 |
8M0151040 |
BELT Timing
|
1 |
|
| 15 |
833104T6 |
GEAR Driven
|
1 |
|
| 16 |
82761140 |
SCREW (M10 x 40)
|
1 |
|
| 17 |
4002320 |
WASHER
|
1 |
|
| 18 |
8M0171549 |
DECAL Maintenance Schedule
|
1 |
|
| 2 |
8248326 |
SCREW (M6 x 25 MM)
|
4 |
|
| 3 |
8M0118173 |
FLYWHEEL ASSEMBLY
|
1 |
|
| 4 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Decal-Warning Spinning Flywheel
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Decal-Timing Marks
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Decal-Warning-Neutral
|
1 |
|
| 8 |
893789 |
NUT
|
1 |
|
| 9 |
893762 |
WASHER (18 X 36 X 3)
|
1 |
|
