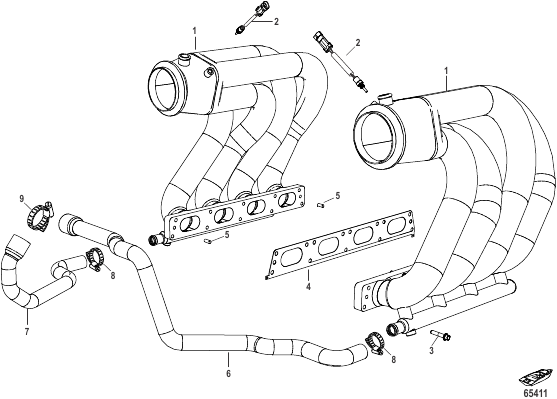

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0144990 |
КОЛЛЕКТОР Starboard HEADER Starboard |
1 | |
| 1 | 8M0144991 |
КОЛЛЕКТОР Port HEADER Port |
1 | |
| 2 | 8M0010146 |
ДАТЧИК Temperature SENSOR Temperature |
2 | superseded |
| 3 | 8M0084475 |
ВИНТ (M8 x 40) SCREW (M8 x 40) |
20 | |
| 4 | 8M0032724 |
ПРОКЛАДКА GASKET |
2 | |
| 5 | 8M0145015 |
ШТИФТ DOWEL |
4 | |
| 6 | 8M0145003 |
РУКАВ Header to Heat Exchanger (Starboard) HOSE Header to Heat Exchanger (Starboard) |
1 | |
| 7 | 8M0145002 |
РУКАВ Header to Heat Exchanger (Port) HOSE Header to Heat Exchanger (Port) |
1 | |
| 8 | 180765 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 9 | 180767 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 |
