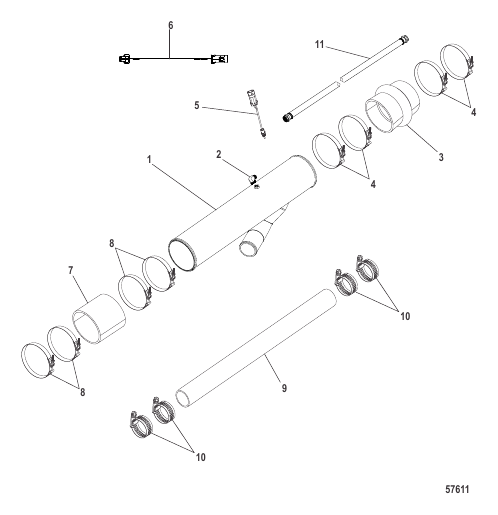

Exhaust Tube QSB 6.7, Design-II, 19-Degree Offset Bib
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0098001 |
КОМПЛЕКТ ВЫХЛОПНОЙ ТРУБЫ 18.75 inch Shaft, Without Drop Box EXHAUST TUBE KIT 18.75 inch Shaft, Without Drop Box |
1 | |
| - | 8M0098002 |
КОМПЛЕКТ ВЫХЛОПНОЙ ТРУБЫ 18.75 inch Shaft, With Drop Box EXHAUST TUBE KIT 18.75 inch Shaft, With Drop Box |
1 | |
| - | 8M0098003 |
КОМПЛЕКТ ВЫХЛОПНОЙ ТРУБЫ Use with 28.37 inch Driveshaft EXHAUST TUBE KIT Use with 28.37 inch Driveshaft |
1 | |
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Exhaust Tube NOT SOLD SEPARATE Exhaust Tube |
1 | |
| 10 | 8M0068823 |
ФИКСАТОР, ШЛАНГ 27-51 мм CLAMP, HOSE 27-51mm |
A/R | |
| 11 | 8M0079382 |
РУКАВ Siphon Circuit HOSE Siphon Circuit |
1 | |
| 2 | 841079 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 3 | 8M0072140 |
ШЛАНГ, выхлопной 152.4 x 152.4 мм HOSE, Exhaust 152.4 x 152.4mm |
1 | |
| 4 | 8M0068909 |
ЗАЖИМ 160-168 мм CLAMP 160-168mm |
4 | superseded |
| 5 | 8M0039116 |
ДАТЧИК Температура SENSOR Temperature |
1 | superseded |
| 6 | 8M0068874 |
ЖГУТ ПРОВОДОВ Exhaust Temperature HARNESS Exhaust Temperature |
1 | |
| 7 | 8M0072141 |
ШЛАНГ, выхлопной 165.1 x 165.1 мм HOSE, Exhaust 165.1 x 165.1mm |
1 | |
| 8 | 8M0068909 |
ЗАЖИМ 160-168 мм CLAMP 160-168mm |
4 | superseded |
| 9 | 8M0069089 |
РУКАВ 38.1 x 889 мм 18.75 inch Shaft, Without Drop Box HOSE 38.1 x 889mm 18.75 inch Shaft, Without Drop Box |
1 | |
| 9 | 8M0068896 |
РУКАВ 38.1 x 660.4 мм 18.75 inch Shaft, With Drop Box HOSE 38.1 x 660.4mm 18.75 inch Shaft, With Drop Box |
1 | |
| 9 | 8M0068897 |
РУКАВ 38.1 x 1067 мм Use with 28.37 inch Driveshaft HOSE 38.1 x 1067mm Use with 28.37 inch Driveshaft |
1 |
