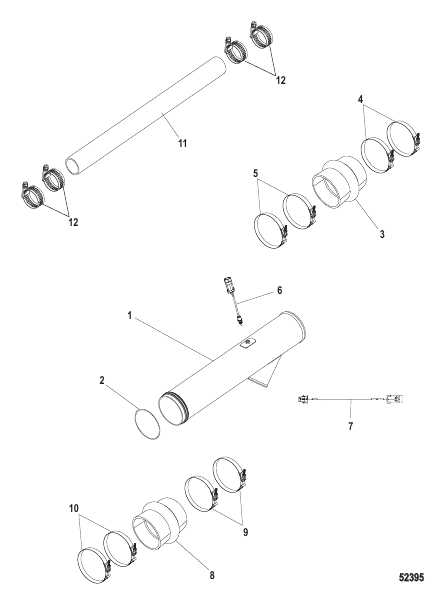

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0077189 |
EXHAUST TUBE KIT 28.37 inch Shaft, Without Drop Box
|
1 |
|
| - |
8M0077204 |
EXHAUST TUBE KIT 28.37 inch Shaft, With Drop Box
|
1 |
|
| - |
8M0077203 |
EXHAUST TUBE KIT 18.75 inch Shaft, Without Drop Box
|
1 |
|
| - |
8M0077185 |
EXHAUST TUBE KIT 18.75 inch Shaft, With Drop Box
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE Exhaust Tube, FRP
|
1 |
|
| 10 |
8M0068907 |
CLAMP 148-155mm
|
2 |
superseded
|
| 11 |
8M0068895 |
HOSE 38.1 x 1041mm 28.37 inch Shaft, Without Drop Box
|
1 |
|
| 11 |
8M0068897 |
HOSE 38.1 x 1067mm 28.37 inch Shaft, With Drop Box
|
1 |
|
| 11 |
8M0069089 |
HOSE 38.1 x 889mm 18.75 inch Shaft, Without Drop Box
|
1 |
|
| 11 |
8M0068896 |
HOSE 38.1 x 660.4mm 18.75 inch Shaft, With Drop Box
|
1 |
|
| 12 |
8M0068823 |
CLAMP, HOSE 27-51mm
|
A/R |
|
| 2 |
8M0068905 |
SEAL, O RING
|
1 |
|
| 3 |
8M0068868 |
HOSE, HUMP 127 x 127mm
|
1 |
|
| 4 |
8M0068908 |
CLAMP 134-142mm
|
2 |
superseded
|
| 5 |
8M0068908 |
CLAMP 134-142mm
|
2 |
superseded
|
| 6 |
8M0039116 |
SENSOR Temperature
|
1 |
superseded
|
| 7 |
8M0068874 |
HARNESS Exhaust Temperature
|
1 |
|
| 8 |
8M0068866 |
HOSE, Exhaust 127 x 139.7mm
|
1 |
|
| 9 |
8M0068908 |
CLAMP 134-142mm
|
2 |
superseded
|
