| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0087904 |

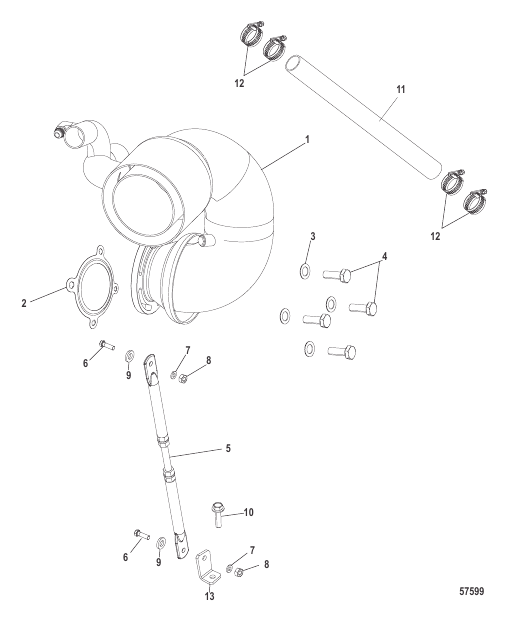

RISER KIT Exhaust
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE RISER
|
1 |
|
| 10 |
8M0068824 |
SCREW (M12 x 1.75)
|
1 |
|
| 11 |
8M0090670 |
HOSE 50.8 x 609.6mm
|
1 |
|
| 12 |
8M0068822 |
CLAMP, HOSE 46-70mm
|
A/R |
|
| 13 |
8M0068904 |
BRACE
|
1 |
|
| 2 |
8M0069196 |
GASKET
|
1 |
|
| 3 |
8M0068951 |
WASHER
|
4 |
|
| 4 |
853219 |
SCREW (M8 x 25)
|
4 |
|
| 5 |
8M0069201 |
BRACE
|
1 |
|
| 6 |
35047 |
SCREW (.375-16 x 1.250) Stainless Steel
|
2 |
|
| 7 |
34931 |
WASHER (.406 x .734 x .063) Stainless Steel
|
2 |
|
| 8 |
82670912 |
NUT (.375-16) Stainless Steel
|
2 |
|
| 9 |
47659 |
LOCKWASHER (.437)
|
2 |
|
