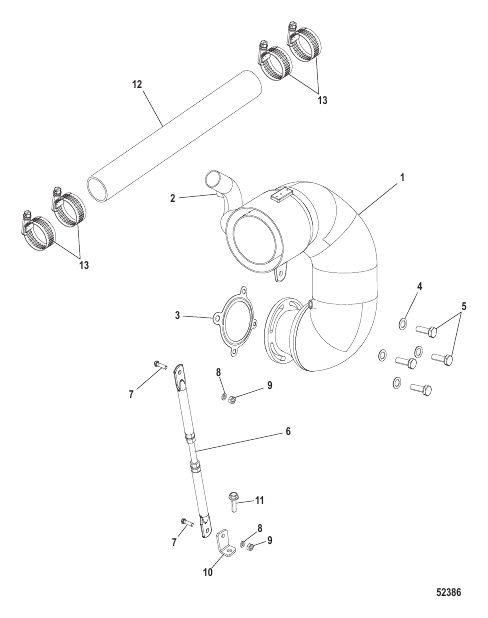

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0078331 |
RISER KIT Exhaust Elbow 18.75 Inch Shaft With Drop Box
|
1 |
|
| - |
8M0079427 |
RISER KIT Exhaust Elbow 18.75 Inch Shaft Without Drop Box and 28.37 Inch With Drop Box
|
1 |
|
| - |
8M0080284 |
RISER KIT Exhaust Elbow 28.37 Inch Shaft Without Drop Box
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE RISER
|
1 |
|
| 10 |
8M0068904 |
BRACE
|
1 |
|
| 11 |
8M0068824 |
SCREW (M12 x 1.75)
|
1 |
|
| 12 |
8M0068899 |
HOSE 50.8 x 711.2mm 18.75 Inch Shaft with Drop Box
|
1 |
|
| 12 |
8M0068971 |
HOSE 50.8 x 558.8mm 18.75 Inch Shaft Without Drop Box, 28.37 Inch
|
1 |
|
| 13 |
8M0068822 |
CLAMP, HOSE 46-70mm
|
A/R |
|
| 2 |
NSS |
NOT SOLD SEPARATE Fitting, 90 Degree
|
1 |
|
| 3 |
8M0068196 |
SEAL
|
1 |
|
| 4 |
8M0068951 |
WASHER
|
4 |
|
| 5 |
853219 |
SCREW (M8 x 25)
|
4 |
|
| 6 |
8M0068856 |
BRACE 28.37 inch Shaft With Drop Box, 18.75 Inch
|
1 |
|
| 6 |
8M0069201 |
BRACE 28.37 Inch Shaft Without Drop Box
|
1 |
|
| 7 |
35047 |
SCREW (.375-16 x 1.250) Stainless Steel
|
2 |
|
| 8 |
34931 |
WASHER (.406 x .734 x .063) Stainless Steel
|
2 |
|
| 9 |
82670912 |
NUT (.375-16) Stainless Steel
|
2 |
|
