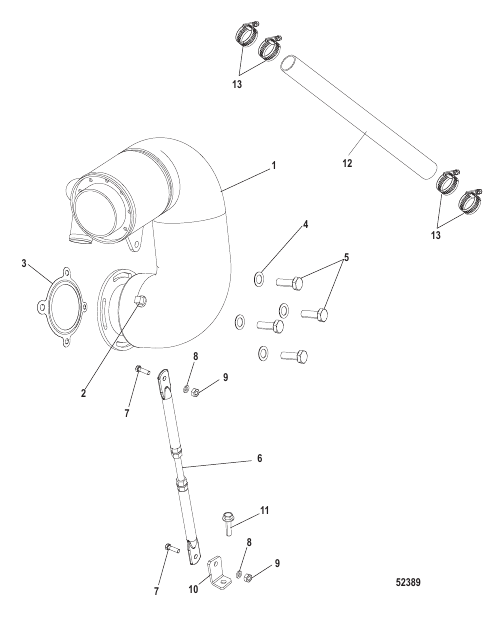

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0077217 |
RISER KIT Exhaust Elbow 28.37 inch Shaft With Drop Box, 18.75 With and Without Drop Box
|
1 |
|
| - |
8M0077219 |
RISER KIT Exhaust Elbow 28.37 inch Shaft, Without Drop Box
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE RISER
|
1 |
|
| 10 |
8M0068904 |
BRACE
|
1 |
|
| 11 |
8M0068824 |
SCREW (M12 x 1.75)
|
1 |
|
| 12 |
8M0068894 |
HOSE 38.1 x 702.8mm 28.37 inch Shaft, Without Drop Box
|
1 |
|
| 12 |
8M0068896 |
HOSE 38.1 x 660.4mm 28.37 inch Shaft, With Drop Box, 18.75 inch Shaft
|
1 |
|
| 13 |
8M0068823 |
CLAMP, HOSE 27-51mm
|
AR |
|
| 2 |
NSS |
NOT SOLD SEPARATE FITTING
|
1 |
|
| 3 |
8M0068859 |
GASKET
|
1 |
|
| 4 |
853219 |
SCREW (M8 x 25)
|
4 |
|
| 5 |
8M0068831 |
WASHER
|
4 |
|
| 6 |
8M0068856 |
BRACE
|
1 |
|
| 7 |
35047 |
SCREW (.375-16 x 1.250) Stainless Steel
|
2 |
|
| 8 |
34931 |
WASHER (.406 x .734 x .063) Stainless Steel
|
2 |
|
| 9 |
82670912 |
NUT (.375-16) Stainless Steel
|
2 |
|
