Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Zeus Pod Drive, Doen Jet Drive / ZEUS 3000 / [0M968994 THRU 0M968994] - Cat.# 90-8M0079483 / Gear Housing

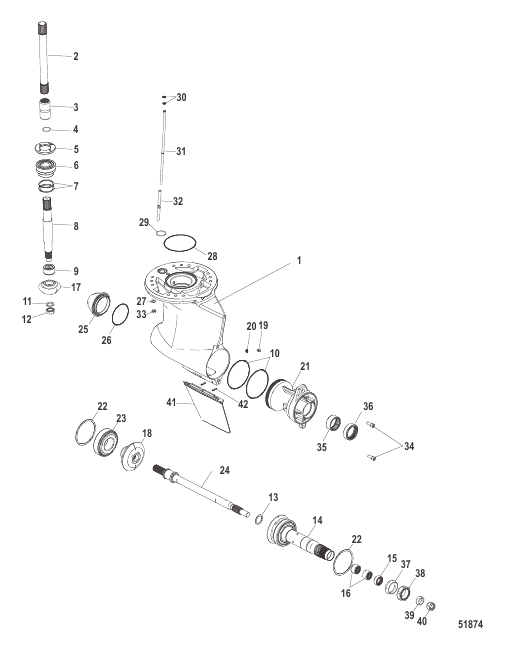

Gear Housing

Parts (46)

#Part NumberDescriptionQtyStatus
- 879345T44 GEARCASE ASSEMBLY 1.478 Ratio Use With POD Ratios 1.50, 1.79, 2.06 1
- 879345T43 GEARCASE ASSEMBLY 1.611 Ratio Use With POD Ratios 1.34, 1.95, 2.24 1
1 879345T45   GEARCASE Basic 1
10 87159   O RING 2
11 8M0007721   WASHER 1
12 8M0022754   NUT (1.00-14) 1
13 879148A06   SHIM SET AR
14 879150A69   REPAIR KIT, PROP SHAFT/GEAR SET 23/34 Tooth Count 1
14 879312A07   REPAIR KIT, PROP SHAFT/GEAR SET 18/29 Tooth Count Zorro 1
15 8M0033407     SEAL 1
16 57410     BEARING Roller 2
17 NSS     NOT SOLD SEPARATE Pinion Gear 1
18 NSS     NOT SOLD SEPARATE Forward Gear, (Component of 879150A69) 1
19 8M0058389   SCREW KIT Drain 1
2 879345T48   DRIVESHAFT 1
20 830749     SEAL 1 superseded
21 8M0058357   CARRIER Bearing 1
22 899815A01   SHIM SET AR
23 879148T03   BEARING ASSEMBLY 1
24 8M0054065   SHAFT 1
25 879345T46   NOSE 1
26 8M0007618   O RING (107.62 x 2.62) 1
27 4002321   WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel 10
28 8M0007558   O RING (152.07 x 2.62) 1
29 891935   O-RING 1
3 8M8021038   COUPLER 1 superseded
30 8M0024744   O RING (.296 x .139) Top 1
30 8M0079852   SPLIT RING Bottom 1
31 8M0024745   TUBE 1
32 8M0025395   GUIDE 1
33 896895   NUT (M12) 8
34 88552845   SCREW (M12 x 45) 2 superseded
35 805079T   BEARING Roller 1
36 861694   SEAL Oil 1
37 879148A04 PROP NUT KIT Front 1 superseded
38 859131   PROP NUT Front 1 superseded
39 805101T THRUST WASHER Bravo Three (rear), Bravo Four S (front), Zeus (rear) Rear 1
4 38476     RING Retaining 1
40 862907 PROP NUT Rear 1
41 8M0072969 SKEG KIT 1
42 8M0072584   PIN 2
5 879148T06   NUT 1
6 8M0048520   BEARING ASSEMBLY With Spacer 1
7 36178A02   SHIM SET 1
8 879345T47   DRIVESHAFT 1
9 86754T   BEARING ASSEMBLY Roller 1
