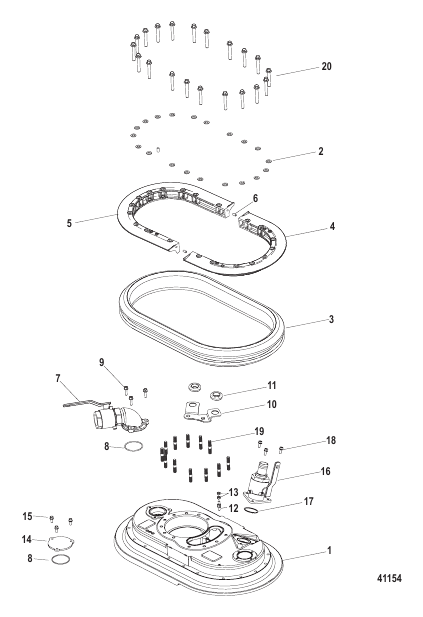

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0074256 |
BRONZE REPAIR KIT
|
1 |
|
| - |
8M0082937 |
CERAMIC REPAIR KIT
|
1 |
|
| - |
8M0077475 |
DECAL Do Not Power Wash
|
1 |
|
| 1 |
879345T65 |
MID SECTION PLATE
|
1 |
superseded
|
| 1 |
8M0094678 |
MID SECTION PLATE [0M971958] & Up
|
1 |
|
| 10 |
8M0007662 |
BRACKET
|
1 |
|
| 11 |
8M0007663 |
GROMMET
|
2 |
|
| 12 |
8M0039782 |
STUD (M8 x 30)
|
1 |
superseded
|
| 13 |
400213 |
NUT (M8) Stainless Steel
|
2 |
|
| 14 |
8M0037194 |
COVER PLATE
|
1 |
|
| 15 |
8M0039671 |
SCREW (M8 x 20)
|
3 |
|
| 16 |
879345T58 |
BALL VALVE ASSMBLY 1.5 Inch
|
1 |
|
| 17 |
20826 |
O-RING (2.230 x .139)
|
1 |
|
| 18 |
8M0039671 |
SCREW (M8 x 20)
|
3 |
|
| 19 |
8M0007531 |
STUD (M12 x 63)
|
12 |
|
| 2 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
20 |
|
| 20 |
879150A86 |
SCREW KIT
|
1 |
|
| 3 |
8M0007547 |
GROMMET
|
1 |
superseded
|
| 4 |
879148T61 |
CLAMP RING Rear
|
1 |
|
| 5 |
879148T60 |
CLAMP RING Front
|
1 |
|
| 6 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 7 |
879150A63 |
BALL VALVE ASSEMBLY Short Neck, 2.0 Inch
|
1 |
superseded
|
| 7 |
879150A64 |
BALL VALVE ASSEMBLY 2.5 Inch
|
1 |
superseded
|
| 8 |
38106 |
O-RING
|
1 |
|
| 9 |
8M0041198 |
SCREW (M8 x 30)
|
3 |
|
