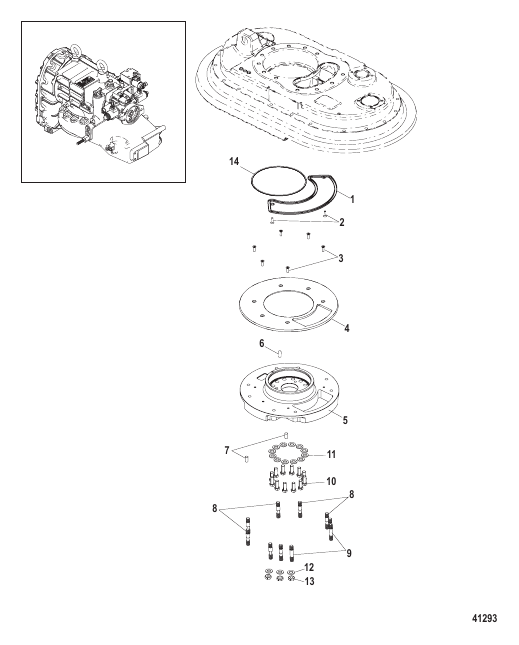

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0007545 |
SEAL
|
1 |
|
| 10 |
8M0042302 |
SCREW (M14 x 40)
|
12 |
|
| 11 |
4002323 |
WASHER (15.02 mm x 28.0 mm x 2.8 mm) Stainless Steel
|
12 |
|
| 12 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
10 |
|
| 13 |
896895 |
NUT (M12)
|
10 |
|
| 14 |
8M0007557 |
O-RING (133.02 x 2.62)
|
1 |
|
| 2 |
832838 |
SCREW (M6 x 20)
|
2 |
superseded
|
| 3 |
8M0022382 |
SCREW (M6 x 20) [0M971957] & Below
|
6 |
superseded
|
| 3 |
8M0095759 |
SCREW (M6 x 16) [0M971958] & Up
|
6 |
|
| 4 |
8M0053618 |
PLATE
|
1 |
|
| 5 |
879150A78 |
KING PIN ADAPTER PLATE Port
|
1 |
|
| 5 |
879150A83 |
KING PIN ADAPTER PLATE Starboard And Center
|
1 |
|
| 6 |
8M0043826 |
PIN Dowel
|
1 |
|
| 7 |
826359 |
PIN
|
2 |
|
| 8 |
8M0035876 |
STUD M12X61 Stainless Steel
|
8 |
superseded
|
| 9 |
8M0007531 |
STUD (M12 x 63)
|
2 |
|
