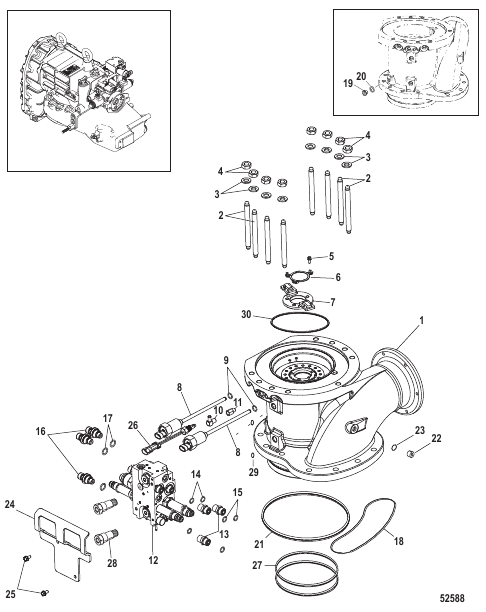

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M8025206 |
ACTUATOR Port or Starboard
|
1 |
|
| 1 |
8M0167022 |
ACTUATOR Center
|
1 |
|
| 10 |
196881 |
FITTING (90 Degree) [0M976177] & Below
|
1 |
|
| 10 |
883470 |
FITTING (90 Degree) [0M976178] & Up
|
1 |
|
| 11 |
28586 |
FITTING Adapter [0M976177] & Below
|
1 |
|
| 12 |
8M0079529 |
MANIFOLD
|
1 |
|
| 13 |
8M0033226 |
FITTING (11/16 - 16)Straight (Stainless Steel)
|
3 |
superseded
|
| 14 |
8M0047401 |
O-RING (.468 X .078)
|
1 |
|
| 15 |
8M0047399 |
O-RING
|
3 |
|
| 16 |
8M6001897 |
TRANSDUCER
|
3 |
superseded
|
| 17 |
8M0024307 |
O-RING (8.92 x 1.83)
|
3 |
|
| 18 |
8M0007558 |
O RING (152.07 x 2.62)
|
1 |
|
| 19 |
79953A04 |
PLUG ASSEMBLY (.375-16 x .250)
|
1 |
|
| 2 |
8M0007624 |
STUD (M12 x 140) [0M972208] & Below
|
8 |
superseded
|
| 2 |
8M0090589 |
STUD (M12 x 140) [0M972209] & Up
|
8 |
|
| 20 |
830749 |
SEAL
|
1 |
superseded
|
| 21 |
8M0007701 |
O-RING (183.74 x 3.53)
|
1 |
|
| 22 |
8M0042546 |
PLUG (M10 x 15)
|
1 |
|
| 23 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 24 |
8M8025203 |
BRACKET
|
1 |
superseded
|
| 25 |
40011126 |
SCREW (M6 x 13) Stainless Steel
|
2 |
|
| 26 |
8M0021043 |
SENSOR ASSEMBLY Fuel and Water
|
1 |
superseded
|
| 27 |
8M0045622 |
SEAL Oscillating
|
2 |
|
| 28 |
8M0047378 |
BANJO BOLT
|
2 |
superseded
|
| 29 |
8M0094507 |
O-RING (17.93 x 2.46)
|
2 |
|
| 3 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
8 |
|
| 30 |
8M0153478 |
ACTUATOR SEAL KIT
|
1 |
|
| 4 |
896895 |
NUT (M12)
|
8 |
|
| 5 |
4000327 |
SCREW (M6 x 14)
|
3 |
|
| 6 |
8M0007700 |
PLATE
|
1 |
|
| 7 |
8M0007666 |
BRACKET
|
1 |
|
| 8 |
8M0050825 |
SENSOR
|
2 |
|
| 9 |
831985 |
O-RING (.468 x .078)
|
2 |
|
| NS |
8M0154567 |
TOOL End Cap Torque
|
1 |
|
| NS |
8M0155308 |
GEARCASE SUPPORT ASSEMBLY
|
1 |
|
