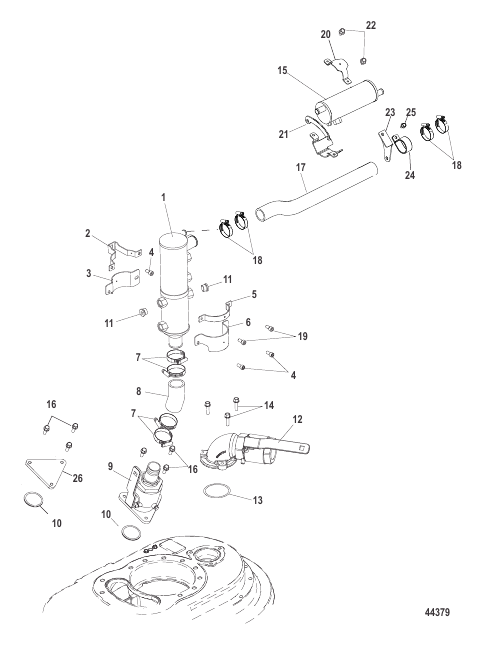

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
879150A79 |
COOLER
|
1 |
superseded
|
| 10 |
20826 |
O-RING (2.230 x .139)
|
1 |
|
| 11 |
8M0025635 |
PLUG
|
1 |
|
| 12 |
815113A06 |
BALL VALVE ASSEMBLY Long Neck, 2.0 Inch
|
1 |
superseded
|
| 12 |
879150A64 |
BALL VALVE ASSEMBLY 2.5 Inch
|
1 |
superseded
|
| 13 |
38106 |
O-RING
|
1 |
|
| 14 |
8M0041198 |
SCREW (M8 x 30)
|
3 |
|
| 15 |
879150A80 |
COOLER
|
1 |
superseded
|
| 16 |
8M0039671 |
SCREW (M8 x 20)
|
3 |
|
| 17 |
8M0062634 |
HOSE 44.00 inch Bulk Cut to 10 Inch
|
1 |
|
| 18 |
815504220 |
CLAMP Worm Gear
|
4 |
|
| 19 |
4000327 |
SCREW (M6 x 14)
|
2 |
|
| 2 |
8M0007715 |
BRACKET
|
1 |
|
| 20 |
8M0025162 |
CLAMP
|
1 |
|
| 21 |
8M0040337 |
BRACKET
|
1 |
superseded
|
| 22 |
4000327 |
SCREW (M6 x 14)
|
2 |
|
| 23 |
8M0026220 |
BRACKET
|
1 |
|
| 24 |
8M0041193 |
CLIP
|
1 |
|
| 25 |
81893414 |
SCREW (M8 x 14)
|
1 |
|
| 26 |
8M0046084 |
COVER PLATE Zorro
|
1 |
|
| 3 |
8M0007713 |
BRACKET
|
1 |
|
| 4 |
4006731 |
SCREW (M6 x 16)
|
3 |
|
| 5 |
8M0007716 |
BRACKET
|
1 |
|
| 6 |
8M0007714 |
BRACKET
|
1 |
|
| 7 |
815504224 |
CLAMP Worm Gear
|
4 |
|
| 8 |
8M0037197 |
HOSE
|
1 |
|
| 9 |
879345T58 |
BALL VALVE ASSMBLY 1.5 Inch
|
1 |
|
| NS |
8M0037747 |
DECAL No Step
|
1 |
|
