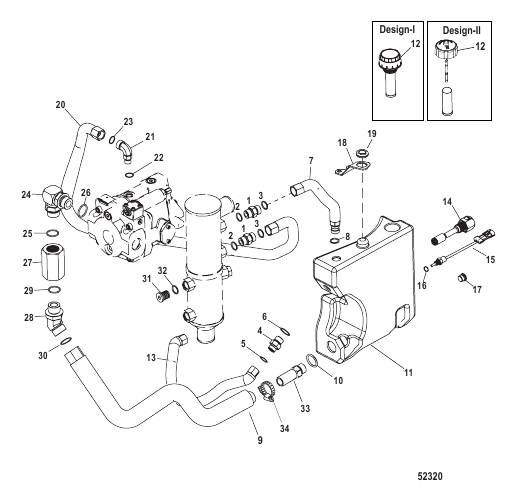

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0021781 |
FITTING
|
2 |
|
| 10 |
8M0047403 |
O-RING
|
1 |
|
| 11 |
879345T53 |
RESERVOIR TANK Internal Cap Threads Design-I [0M969230] & Below
|
1 |
disc.
|
| 11 |
8M0072753 |
RESERVOIR ASSEMBLY External Cap Threads Design-II [0M969231] & Up
|
1 |
superseded
|
| 12 |
8M0041855 |
RESERVOIR CAP W/Strainer Design-I [0M969230] & Below
|
1 |
superseded
|
| 12 |
8M6001367 |
RESERVOIR CAP Design-II [0M969231] & Up
|
1 |
|
| 13 |
8M0046071 |
HOSE
|
1 |
|
| 14 |
8M0026573 |
SWITCH
|
1 |
|
| 15 |
8M0010146 |
SENSOR
|
1 |
superseded
|
| 16 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 17 |
8M0022463 |
PLUG
|
1 |
|
| 18 |
8M0007661 |
BRACKET
|
1 |
|
| 19 |
8M0007663 |
GROMMET
|
1 |
|
| 2 |
8M0047402 |
O-RING
|
1 |
|
| 20 |
8M0049763 |
HOSE
|
1 |
|
| 21 |
8M0039094 |
FITTING 90 Degree (.365 SAE x .50 ORFS)
|
1 |
|
| 22 |
8M0047401 |
O-RING (.468 X .078)
|
1 |
|
| 23 |
45253 |
O-RING
|
1 |
|
| 24 |
8M0040169 |
FITTING 90 Degree (.75 SAE x .75 SAEMA)
|
1 |
|
| 25 |
8M0047403 |
O-RING
|
1 |
|
| 26 |
8M0047403 |
O-RING
|
1 |
|
| 27 |
8M0040139 |
MAGNETIC FILTER
|
1 |
|
| 28 |
8M0040191 |
FITTING 45 Degree (.75 SAE X .75 ORFSM)
|
1 |
|
| 29 |
8M0047403 |
O-RING
|
1 |
|
| 3 |
45253 |
O-RING
|
2 |
|
| 30 |
8M0047400 |
O-RING
|
1 |
|
| 31 |
8M0025635 |
PLUG
|
1 |
|
| 32 |
8M0047402 |
O-RING
|
1 |
|
| 33 |
8M0040286 |
HOSE
|
1 |
|
| 34 |
815504616 |
CLAMP Worm Gear
|
1 |
|
| 4 |
8M0033230 |
FITTING (Stainless Steel)
|
1 |
|
| 5 |
45253 |
O-RING
|
1 |
|
| 6 |
8M0047402 |
O-RING
|
1 |
|
| 7 |
8M0049753 |
HOSE
|
1 |
|
| 8 |
8M0047402 |
O-RING
|
1 |
|
| 9 |
8M0040287 |
HOSE
|
1 |
|
| NS |
8M0037964 |
STRAINER Reservoir Design-II [0M969231] & Up
|
1 |
|
