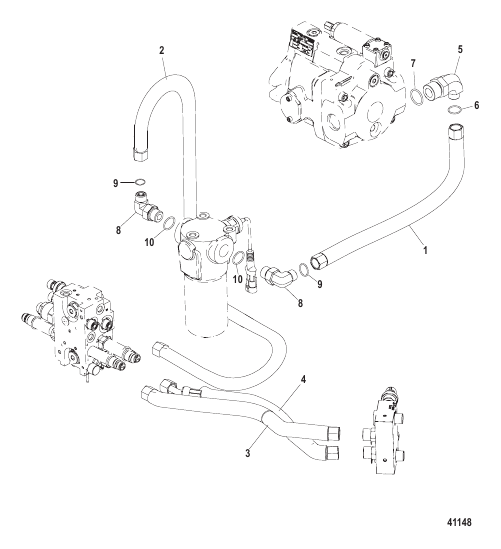

Hydraulic System Port
Parts (10)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0053638 |
РУКАВ Pump to filter HOSE Pump to filter |
1 | superseded |
| 10 | 8M0047402 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 2 | 8M0053637 |
РУКАВ Filter to manifold HOSE Filter to manifold |
1 | superseded |
| 3 | 8M0053639 |
РУКАВ A-Port HOSE A-Port |
1 | superseded |
| 4 | 8M0053640 |
РУКАВ B-Port HOSE B-Port |
1 | superseded |
| 5 | 8M0039062 |
ФИТИНГ 90 градусов (0.75 SAE x 0.375 ORFS) FITTING 90 Degree (.75 SAE x .375 ORFS) |
1 | |
| 6 | 8M0047399 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | 8M0047403 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 8 | 8M0038213 |
ФИТИНГ 90 градусов FITTING 90 degree |
2 | |
| 9 | 8M0047399 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 |
