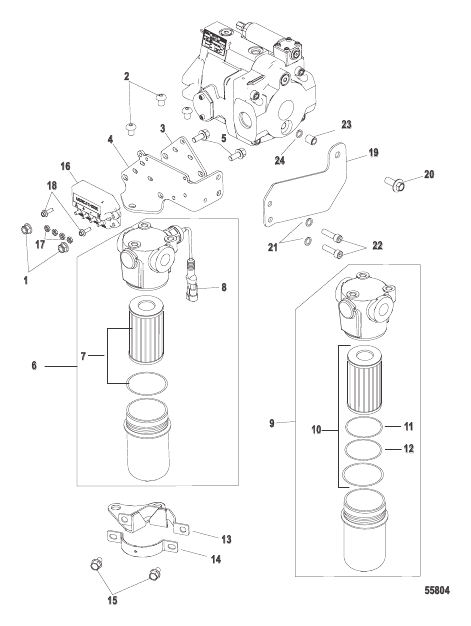

Hydraulic Filter Assembly High Pressure
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 826365 |
ГАЙКА (M8) NUT (M8) |
4 | |
| 10 | 879150A68 |
ФИЛЬТР Design-II [0M969189] & Up FILTER Design-II [0M969189] & Up |
1 | |
| 11 | 8M0088859 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (56.82 x 2.62) O-RING (56.82 x 2.62) |
1 | |
| 12 | 8M0088857 |
КОЛЬЦО Parbak RING Parbak |
1 | |
| 13 | 8M0050943 |
КРОНШТЕЙН Filter Assembly-Lower-Inner BRACKET Filter Assembly-Lower-Inner |
1 | |
| 14 | 8M0038623 |
КРОНШТЕЙН Filter Assembly-Lower-Outer BRACKET Filter Assembly-Lower-Outer |
1 | |
| 15 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
2 | |
| 16 | 8M0100517 |
ПУЛЬТ MERCATHODE MerCathode MERCATHODE CONTROLLER MerCathode |
1 | |
| 17 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
4 | |
| 18 | 4010516 |
ВИНТ (M5 x 16), нержавеющая сталь SCREW (M5 x 16) Stainless Steel |
2 | |
| 19 | 8M0039653 |
КРОНШТЕЙН BRACKET |
1 | |
| 2 | 8M0038212 |
ВИНТ (0.375 -16 x 0.50) SCREW (.375 -16 X .50) |
3 | |
| 20 | 4010825 |
ВИНТ Шестигранный фланец (M10 x 25), нержавеющая сталь SCREW (M10 x 25) Hex Flange - Stainless Steel |
1 | |
| 21 | 8M0040884 |
ШАЙБА WASHER |
2 | discontinued |
| 22 | 82497020 |
ВИНТ (M8 x 20) Use With Washers SCREW (M8 x 20) Use With Washers |
2 | |
| 22 | 4010716 |
ВИНТ (M8 x 16) No Washers Needed SCREW (M8 x 16) No Washers Needed |
2 | |
| 23 | 66751 |
ПРОСТАВКА (0.250 x 0.390 x 0.630), нержавеющая сталь SPACER (.250 x .390 x .630) Stainless Steel |
1 | |
| 24 | 4002319 |
ШАЙБА (10.85x20) WASHER (10.85x20) |
1 | |
| 3 | 8M0035842 |
КРОНШТЕЙН Filter Assembly-Inner BRACKET Filter Assembly-Inner |
1 | |
| 4 | 8M0038094 |
КРОНШТЕЙН Filter Assembly-Outer BRACKET Filter Assembly-Outer |
1 | |
| 5 | 81893420 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
4 | |
| 6 | 879345T52 |
ФИЛЬТР В СБОРЕ High Pressure Hydraulic Design-I [0M969188] & Below FILTER ASSEMBLY High Pressure Hydraulic Design-I [0M969188] & Below |
1 | superseded |
| 7 | 879150A68 |
ФИЛЬТР Design-I [0M969188] & Below FILTER Design-I [0M969188] & Below |
1 | |
| 8 | 8M6001296 |
ДАТЧИК Design-I [0M969188] & Below TRANSDUCER Design-I [0M969188] & Below |
1 | discontinued |
| 9 | 897345T71 |
ФИЛЬТР В СБОРЕ High Pressure Hydraulic Design-II [0M969189] & Up FILTER ASSEMBLY High Pressure Hydraulic Design-II [0M969189] & Up |
1 |
