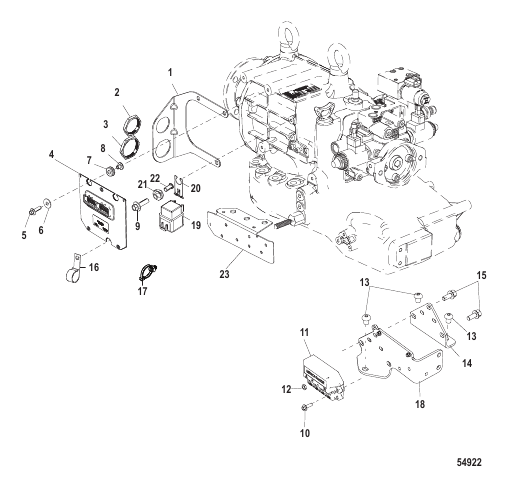

Electrical
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0040764 |
КРОНШТЕЙН BRACKET |
1 | |
| 10 | 4010516 |
ВИНТ (M5 x 16), нержавеющая сталь SCREW (M5 x 16) Stainless Steel |
2 | |
| 11 | 8M0100517 |
ПУЛЬТ MERCATHODE MerCathode MERCATHODE CONTROLLER MerCathode |
1 | |
| 12 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
4 | |
| 13 | 8M0038212 |
ВИНТ (0.375 -16 x 0.50) SCREW (.375 -16 X .50) |
3 | |
| 14 | 8M0035842 |
КРОНШТЕЙН BRACKET |
1 | |
| 15 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
2 | |
| 16 | 65292 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 17 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
4 | |
| 18 | 8M0038094 |
КРОНШТЕЙН BRACKET |
1 | |
| 19 | 882751A1 |
РЕЛЕ В СБОРЕ RELAY ASSEMBLY |
1 | superseded |
| 2 | 889664 |
ГАЙКА (1.500-18), черный нейлон NUT (1.500-18) Black Nylon |
1 | |
| 20 | 828102 |
КРОНШТЕЙН BRACKET |
3 | superseded |
| 21 | 818967 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 22 | 818968 |
ВТУЛКА BUSHING |
3 | superseded |
| 23 | 8M0037940 |
КРОНШТЕЙН BRACKET |
1 | |
| 3 | 8M2001655 |
ГАЙКА NUT |
1 | |
| 4 | 8M0079410 |
TVM (Port) [0M975121] & Below TVM (Port) [0M975121] & Below |
1 | superseded |
| 4 | 8M0120345 |
TVM Zeus, левый борт (Port) [0M975122] & Up TVM Zeus Port (Port) [0M975122] & Up |
1 | |
| 4 | 8M0079899 |
TVM (Center) [0M975121] & Below TVM (Center) [0M975121] & Below |
1 | superseded |
| 4 | 8M0120347 |
TVM Zeus, центр (Center) [0M975122] & Up TVM Zeus Center (Center) [0M975122] & Up |
1 | |
| 4 | 8M0079409 |
TVM (Starboard) [0M975121] & Below TVM (Starboard) [0M975121] & Below |
1 | superseded |
| 4 | 8M0120344 |
TVM Zeus, правый борт (Starboard) [0M975122] & Up TVM Zeus Starboard (Starboard) [0M975122] & Up |
1 | |
| 5 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 | |
| 6 | 65567 |
ШАЙБА (0.265 x 0.750 x 0.048), нержавеющая сталь WASHER (.265 x .750 x .048) Stainless Steel |
3 | |
| 7 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 8 | 856954 |
ВТУЛКА BUSHING |
3 | |
| 9 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 |
