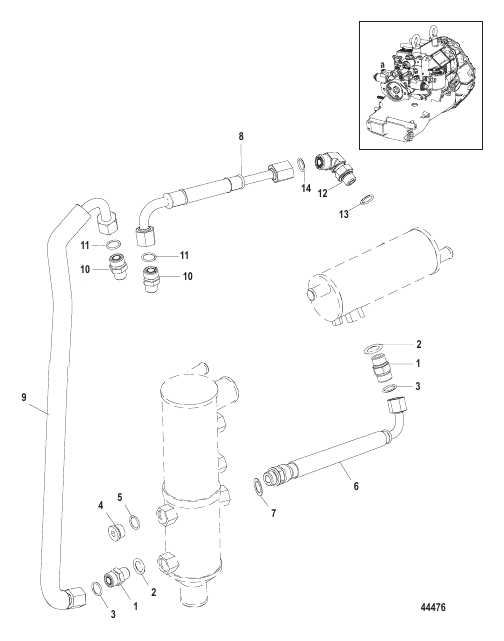

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0021781 | FITTING | 2 | |
| 10 | 8M0021782 | FITTING | 2 | |
| 11 | 45253 | O-RING | 1 | |
| 12 | 8M0033311 | FITTING (90 Degree)(Stainless Steel) | 1 | |
| 13 | 8M0047401 | O-RING (.468 X .078) | 1 | |
| 14 | 45253 | O-RING | 1 | |
| 2 | 8M0047402 | O-RING | 1 | |
| 3 | 45253 | O-RING | 2 | |
| 4 | 8M0025635 | PLUG | 1 | |
| 5 | 8M0047402 | O-RING | 1 | |
| 6 | 8M0049776 | HOSE Bottom | 1 | |
| 7 | 8M0047402 | O-RING | 1 | |
| 8 | 8M0049782 | HOSE Top | 1 | |
| 9 | 8M0049754 | HOSE Transmission to Cooler | 1 |
