| # | Part Number | Description | Qty | Status |
|---|
| - |
879150A70 |

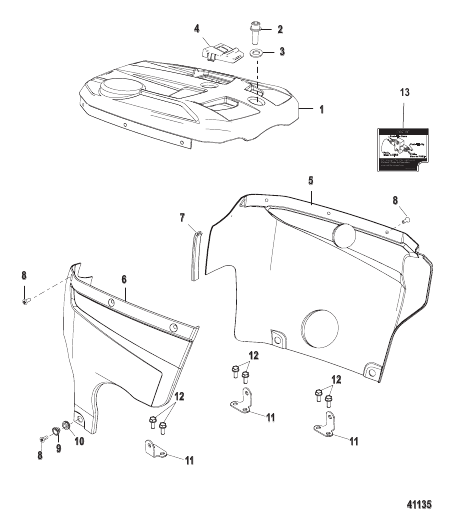

SHROUD ASSEMBLY
|
1 |
|
| 1 |
879345T69 |
SHROUD Top
|
1 |
disc.
|
| 10 |
8M0058484 |
GROMMET
|
3 |
|
| 11 |
8M0022581 |
BRACKET
|
3 |
disc.
|
| 12 |
81893414 |
SCREW (M8 x 14)
|
6 |
|
| 13 |
8M0041040 |
DECAL Emergency Override
|
1 |
|
| 2 |
8M0024374 |
SCREW (M16 x 50)
|
2 |
|
| 3 |
4002325 |
WASHER (17.42 ID x 32 OD. 3.0)
|
2 |
|
| 4 |
8M0024432 |
COVER Hatch
|
1 |
|
| 5 |
897345T99 |
SHROUD Port
|
1 |
disc.
|
| 6 |
897345T26 |
SHROUD Starboard
|
1 |
disc.
|
| 7 |
8M0024726 |
TRIM
|
1 |
|
| 8 |
8M0024727 |
SCREW (M8 x 25)
|
9 |
|
| 9 |
8M0024718 |
BUSHING
|
3 |
|
| NS |
8M0037747 |
DECAL No Step
|
1 |
|
