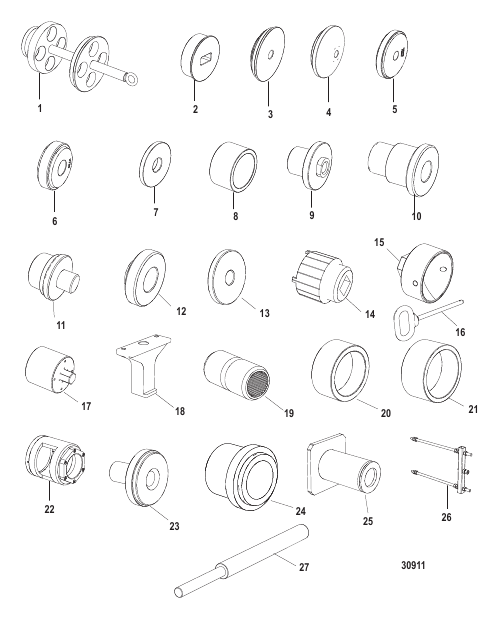

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0007677 |
TOOL Pinion Height Gage
|
1 |
|
| 10 |
8M0007689 |
TOOL Bearing Installation, Propshaft
|
1 |
|
| 11 |
8M0007690 |
TOOL Bearing Installation, Spool
|
1 |
|
| 12 |
8M0007691 |
TOOL Seal Installation, Outer Propshaft
|
1 |
|
| 13 |
8M0007692 |
TOOL Seal Installation, Spool
|
1 |
|
| 14 |
8M0007693 |
TOOL Retaining Nut, Rear Gear
|
1 |
|
| 15 |
8M0007695 |
TOOL Nose Cone Installation
|
1 |
|
| 16 |
8M0030724 |
TOOL Quick Release Pin
|
1 |
|
| 17 |
8M0021221 |
TOOL Vertical Driveshaft Retaining Nut
|
1 |
|
| 18 |
8M0029055 |
TOOL Drive Alignment
|
2 |
|
| 19 |
8M0030004 |
TOOL Spline Adaptor
|
1 |
|
| 2 |
8M0007678 |
TOOL Pinion Wrench Guide
|
1 |
|
| 20 |
8M0030153 |
TOOL Bearing Cone Installation (Small)
|
1 |
|
| 21 |
8M0030154 |
TOOL Bearing Cone Installation (Large)
|
1 |
|
| 22 |
8M0030213 |
TOOL Outer Propshaft Preload
|
1 |
|
| 23 |
8M0030271 |
TOOL Inner Propshaft Support
|
1 |
|
| 24 |
8M0030292 |
TOOL Driveshaft Bearing Cup Puller
|
1 |
superseded
|
| 25 |
8M0030455 |
TOOL Bearing Press
|
1 |
|
| 26 |
8M0030456 |
TOOL Inner Propshaft Preloading
|
1 |
|
| 27 |
8M0030457 |
TOOL Bearing Cup Puller, Spool
|
1 |
superseded
|
| 3 |
8M0007680 |
TOOL Guide
|
1 |
|
| 4 |
8M0007681 |
TOOL Guide
|
1 |
|
| 5 |
8M0007682 |
TOOL Bearing Cup Installation, Propshaft
|
1 |
|
| 6 |
8M0007683 |
TOOL Bearing Cup Installation, Vertical Driveshaft
|
1 |
|
| 7 |
8M0007684 |
TOOL Plate, Bearing Pressing
|
1 |
|
| 8 |
8M0007685 |
TOOL Spacer, Bearing Pressing
|
1 |
|
| 9 |
8M0007688 |
TOOL Pinion Bearing Installation
|
1 |
|
