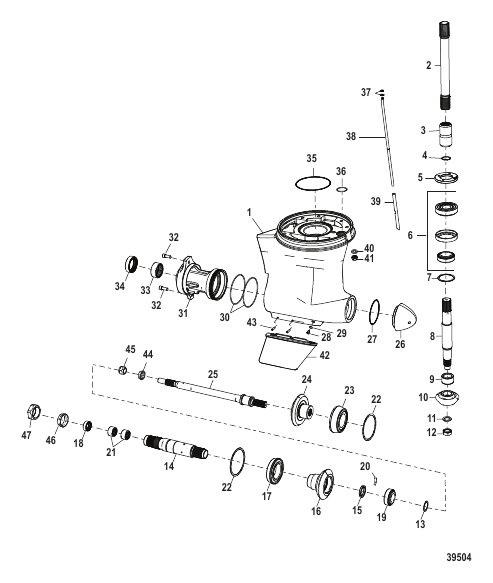

| # | Part Number | Description | Qty | Status |
|---|
| - |
897345T65 |
GEARCASE ASSEMBLY Complete
|
1 |
superseded
|
| 1 |
879148T10 |
GEARCASE Basic
|
1 |
superseded
|
| 10 |
NSS |
NOT SOLD SEPARATE Pinion Gear See Bulletin MC 2012-11
|
1 |
|
| 11 |
8M0007721 |
WASHER
|
1 |
|
| 12 |
8M0022754 |
NUT (1.00-14)
|
1 |
|
| 13 |
879148A06 |
SHIM SET
|
AR |
|
| 14 |
8M0075212 |
REPAIR KIT, PROP SHAFT/GEAR SET See Bulletin MC 2012-11
|
1 |
|
| 15 |
898935 |
NUT
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE Reverse Gear See Bulletin MC 2012-11
|
1 |
|
| 17 |
879148T02 |
BEARING ASSEMBLY
|
1 |
|
| 18 |
8M0033407 |
SEAL
|
1 |
|
| 19 |
879148T04 |
BEARING ASSEMBLY
|
1 |
|
| 2 |
879148T15 |
SHAFT
|
1 |
superseded
|
| 20 |
8M0029358 |
TAB Locking
|
1 |
|
| 21 |
57410 |
BEARING Roller
|
2 |
|
| 22 |
899815A01 |
SHIM SET
|
AR |
|
| 23 |
879148T03 |
BEARING ASSEMBLY
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE Forward Gear See Bulletin MC 2012-11
|
1 |
|
| 25 |
879148T17 |
SHAFT See Bulletin MC 2012-11
|
1 |
disc.
|
| 26 |
879148T13 |
NOSE
|
1 |
|
| 27 |
8M0007618 |
O RING (107.62 x 2.62)
|
1 |
|
| 28 |
8M0001234 |
PLUG Drain
|
1 |
disc.
|
| 29 |
830749 |
SEAL
|
1 |
superseded
|
| 3 |
8M8021038 |
COUPLER
|
1 |
superseded
|
| 30 |
87159 |
O RING
|
2 |
|
| 31 |
879148T12 |
CARRIER Bearing
|
1 |
superseded
|
| 32 |
8M0010988 |
SCREW (M12 x 30)
|
2 |
|
| 33 |
805079T |
BEARING Roller
|
1 |
|
| 34 |
861694 |
SEAL Oil
|
1 |
|
| 35 |
8M0007558 |
O RING (152.07 x 2.62)
|
1 |
|
| 36 |
891935 |
O-RING
|
1 |
|
| 37 |
8M0024744 |
O RING (.296 x .139)
|
2 |
|
| 38 |
8M0024745 |
TUBE
|
1 |
|
| 39 |
8M0025395 |
GUIDE
|
1 |
|
| 4 |
38476 |
RING Retaining
|
1 |
|
| 40 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
8 |
|
| 41 |
896895 |
NUT (M12)
|
8 |
|
| 42 |
879148T14 |
SKEG
|
1 |
superseded
|
| 43 |
8M0007579 |
PIN
|
2 |
|
| 44 |
805101T |
THRUST WASHER Bravo Three (rear), Bravo Four S (front), Zeus (rear)
|
1 |
|
| 45 |
862907 |
PROP NUT
|
1 |
|
| 46 |
879148A04 |
PROP NUT KIT
|
1 |
superseded
|
| 47 |
859131 |
PROP NUT
|
1 |
superseded
|
| 5 |
879148T06 |
NUT
|
1 |
|
| 6 |
879148T21 |
BEARING ASSEMBLY With Spacer
|
1 |
superseded
|
| 7 |
36178A02 |
SHIM SET
|
1 |
|
| 8 |
879148T11 |
DRIVESHAFT
|
1 |
superseded
|
| 9 |
86754T |
BEARING ASSEMBLY Roller
|
1 |
|
