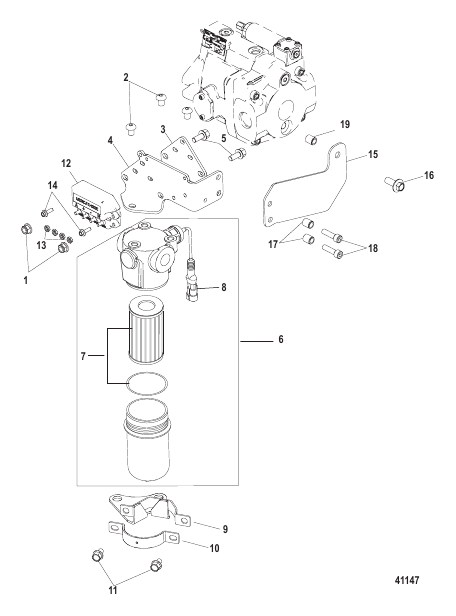

Hydraulic Filter Assembly High Pressure
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 826365 |
ГАЙКА (M8) NUT (M8) |
4 | |
| 10 | 8M0038623 |
КРОНШТЕЙН Filter Assembly-Lower-Outer BRACKET Filter Assembly-Lower-Outer |
1 | |
| 11 | 81893414 |
ВИНТ (M8 x 14) SCREW (M8 x 14) |
2 | |
| 12 | 8M0100517 |
ПУЛЬТ MERCATHODE MerCathode MERCATHODE CONTROLLER MerCathode |
1 | |
| 13 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
4 | |
| 14 | 4010516 |
ВИНТ (M5 x 16), нержавеющая сталь SCREW (M5 x 16) Stainless Steel |
2 | |
| 15 | 8M0039653 |
КРОНШТЕЙН BRACKET |
1 | |
| 16 | 4010825 |
ВИНТ Шестигранный фланец (M10 x 25), нержавеющая сталь SCREW (M10 x 25) Hex Flange - Stainless Steel |
1 | |
| 17 | 824013 |
ВТУЛКА BUSHING |
2 | |
| 18 | 4008930 |
ВИНТ (M8 x 30), нержавеющая сталь SCREW (M8 x 30) Stainless Steel |
2 | |
| 19 | 66751 |
ПРОСТАВКА (0.250 x 0.390 x 0.630), нержавеющая сталь SPACER (.250 x .390 x .630) Stainless Steel |
1 | |
| 2 | 8M0038212 |
ВИНТ (0.375 -16 x 0.50) SCREW (.375 -16 X .50) |
3 | |
| 3 | 8M0035842 |
КРОНШТЕЙН Filter Assembly-Inner BRACKET Filter Assembly-Inner |
1 | |
| 4 | 8M0038094 |
КРОНШТЕЙН Filter Assembly-Outer BRACKET Filter Assembly-Outer |
1 | |
| 5 | 81893420 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
4 | |
| 6 | 879345T52 |
ФИЛЬТР В СБОРЕ High Pressure Hydraulic FILTER ASSEMBLY High Pressure Hydraulic |
1 | superseded |
| 7 | 879150A68 |
ФИЛЬТР FILTER |
1 | |
| 8 | 8M0045299 |
ДАТЧИК ДАВЛЕНИЯ PRESSURE SENSOR |
1 | superseded |
| 9 | 8M0038723 |
КРОНШТЕЙН Filter Assembly-Lower-Inner BRACKET Filter Assembly-Lower-Inner |
1 | superseded |
