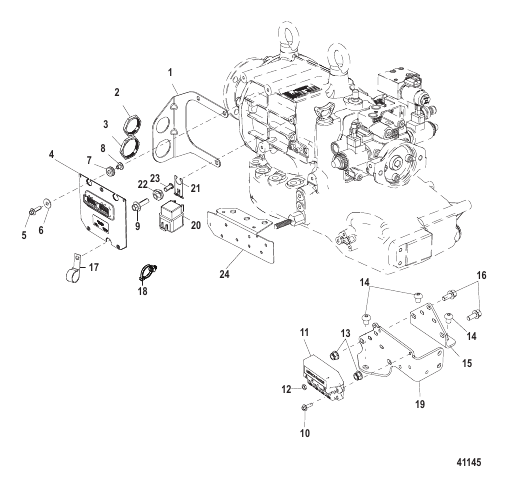

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0040764 |
BRACKET
|
1 |
|
| 10 |
4010516 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 11 |
8M0100517 |
MERCATHODE CONTROLLER MerCathode
|
1 |
|
| 12 |
68219 |
NUT (#10-32) Stainless Steel
|
4 |
|
| 13 |
826365 |
NUT (M8)
|
2 |
|
| 14 |
8M0038212 |
SCREW (.375 -16 X .50)
|
3 |
|
| 15 |
8M0035842 |
BRACKET
|
1 |
|
| 16 |
81893420 |
SCREW (M8 x 20)
|
2 |
|
| 17 |
65292 |
J CLIP
|
1 |
superseded
|
| 18 |
899145 |
CLIP Tie Strap
|
4 |
|
| 19 |
8M0038094 |
BRACKET
|
1 |
|
| 2 |
889664 |
NUT (1.500-18) Black Nylon
|
1 |
|
| 20 |
882751A1 |
RELAY ASSEMBLY
|
1 |
superseded
|
| 21 |
828102 |
BRACKET
|
3 |
superseded
|
| 22 |
818967 |
GROMMET
|
1 |
|
| 23 |
818968 |
BUSHING
|
3 |
superseded
|
| 24 |
8M0037940 |
BRACKET
|
1 |
|
| 3 |
8M2001655 |
NUT
|
1 |
|
| 4 |
879345T56 |
TVM MODULE (Port)
|
1 |
superseded
|
| 4 |
879345T55 |
TVM MODULE (Starboard)
|
1 |
superseded
|
| 5 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 6 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 7 |
834985 |
GROMMET
|
3 |
superseded
|
| 8 |
856954 |
BUSHING
|
3 |
|
| 9 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
