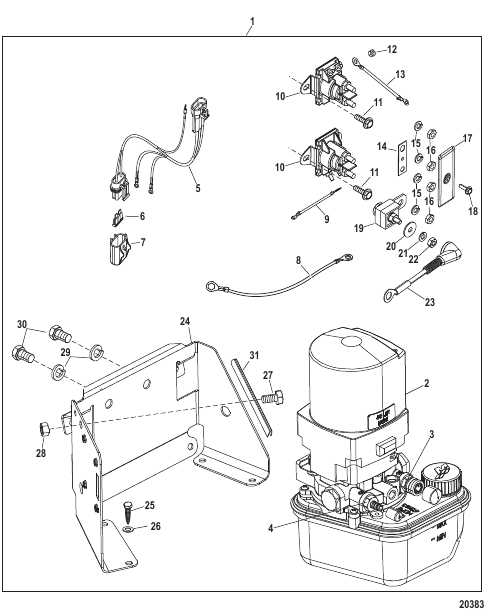

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
865380A25 |
PUMP ASSEMBLY Trim - Complete
|
1 |
|
| 10 |
8M0185622 |
SOLENOID
|
2 |
|
| 11 |
865655 |
SCREW (.250-20 x .500)
|
4 |
|
| 12 |
26419 |
NUT (#8-32) Brass
|
4 |
|
| 13 |
86322A24 |
CABLE ASSEMBLY (4.00 Inches)
|
1 |
|
| 14 |
94275 |
LINK Connector
|
1 |
|
| 15 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
4 |
|
| 16 |
94330 |
NUT (.250-20) Brass
|
4 |
|
| 17 |
861680 |
INSULATOR
|
1 |
|
| 18 |
48409 |
SCREW (#10-16 x .625) Stainless Steel
|
1 |
|
| 19 |
79023T10 |
FUSE ASSEMBLY 110 Ampere
|
1 |
|
| 2 |
865380A13 |
PUMP/MOTOR ASSEMBLY Trim - 12 Volt - NOTE: See Trim Pump/Motor Assembly Section For Parts Breakdown
|
1 |
|
| 20 |
25908 |
WASHER (.265 x .812 x .0625)
|
1 |
|
| 21 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
1 |
|
| 22 |
21825 |
NUT (.250-28)
|
1 |
|
| 23 |
79139A12 |
CABLE ASSEMBLY Red-Positive
|
1 |
|
| 24 |
862548A1 |
BRACKET KIT Floor Or Transom Mounted
|
1 |
|
| 25 |
59784 |
SCREW (.250-10 x 1.00)
|
4 |
|
| 26 |
8M0204649 |
WASHER (.281 x .500 x .060) Stainless Steel
|
4 |
|
| 27 |
90285 |
SCREW (.312-18 x .625)
|
1 |
|
| 28 |
8M0204668 |
NUT (.312-18)
|
1 |
|
| 29 |
35048 |
LOCKWASHER (.375)
|
2 |
|
| 3 |
865413002 |
FITTING Stainless Steel
|
1 |
|
| 30 |
98260 |
SCREW (.375-16 x .620)
|
2 |
|
| 31 |
58491 |
CHANNEL Rubber (4.00 Inches)
|
2 |
|
| 4 |
865412001 |
FITTING Stainless Steel
|
1 |
|
| 5 |
79147A09 |
HARNESS ASSEMBLY
|
1 |
|
| 6 |
812619 |
FUSE Yellow - 20 Ampere
|
1 |
|
| 7 |
828054 |
COVER Fuse
|
1 |
|
| 8 |
79138A9 |
CABLE ASSEMBLY (6.00 Feet) Black-Negative
|
1 |
|
| 9 |
86322A15 |
CABLE ASSEMBLY (5.50 Inches) Black
|
1 |
|
