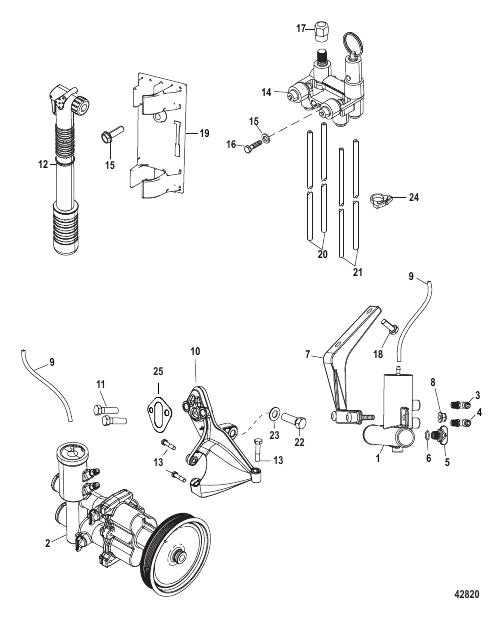

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863717A2 |
ПРИВОД В СБОРЕ Water Drain Port ACTUATOR ASSEMBLY Water Drain Port |
1 | |
| 10 | 8M0045295 |
КРОНШТЕЙН Seawater Pump BRACKET Seawater Pump |
1 | |
| 11 | 865982007 |
ВИНТ Шестигранный фланец (0.375-16 x 1.25) SCREW (.375-16 x 1.25) Hex Flange |
2 | |
| 12 | 863057 |
НАСОС Air PUMP Air |
1 | |
| 13 | 865152 |
ВИНТ (M6) SCREW (M6) |
3 | |
| 14 | 863053T |
ВПУСКНОЙ КОЛЛЕКТОР Air MANIFOLD ASSEMBLY Air |
1 | |
| 15 | 79968 |
ВИНТ (№12-11 x 0.750) SCREW (#12-11 x .750) |
1 | |
| 16 | 82104545 |
ВИНТ (M5 x 45) SCREW (M5 x45) |
2 | |
| 17 | 8M0046566 |
ПРОБКА Service Point CAP Valve Service Point |
1 | |
| 18 | 98260 |
ВИНТ (0.375-16 x 0.620) SCREW (.375-16 x .620) |
2 | |
| 19 | 8M0046157 |
КРОНШТЕЙН Air Pump BRACKET Air Pump |
1 | |
| 2 | 8M0139996 |
PUMP KIT Sea Water With Air Fittings See Seawater Pump for Component Break down PUMP KIT Sea Water With Air Fittings See Seawater Pump for Component Break down |
1 | |
| 20 | 8M0062605 |
РУКАВ (Общая длина 40.00"), зеленый Starboard Cut to 32 Inches, Port Cut to 22 Inches HOSE (40.00 inch Bulk) Green Starboard Cut to 32 Inches, Port Cut to 22 Inches |
2 | disc. |
| 21 | 8M0062601 |
РУКАВ (Общая длина 40.00"), серый Starboard Cut to 32 Inches, Port Cut to 23 Inches HOSE (40.00 inch Bulk) Grey Starboard Cut to 32 Inches, Port Cut to 23 Inches |
2 | |
| 22 | 47462 |
ВИНТ (0.437-14 x 1.250) SCREW (.437-14 x 1.250) |
1 | |
| 23 | 22248 |
ШАЙБА (0.453 x 0.875 x 0.060) WASHER (.453 x .875 x .060) |
3 | |
| 24 | 415825 |
ЗАЖИМ Нейлон CLAMP Nylon |
1 | |
| 25 | 34213 |
ПРОКЛАДКА GASKET |
1 | |
| 3 | 8M0082321 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 4 | 8M0082322 |
ФИТИНГ Оранжевый (90 градусов) FITTING Orange (90 Degree) |
1 | |
| 5 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 6 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
1 | |
| 7 | 863863T |
КРОНШТЕЙН Actuator Mounting Port BRACKET Actuator Mounting Port |
1 | |
| 8 | 826365 |
ГАЙКА (M8) Nylock NUT (M8) Nylock |
2 | |
| 9 | 8630561 |
РУКАВ (Общая длина 42.00"), черный Air HOSE (42.00 Inches Bulk) Black Air |
2 |
