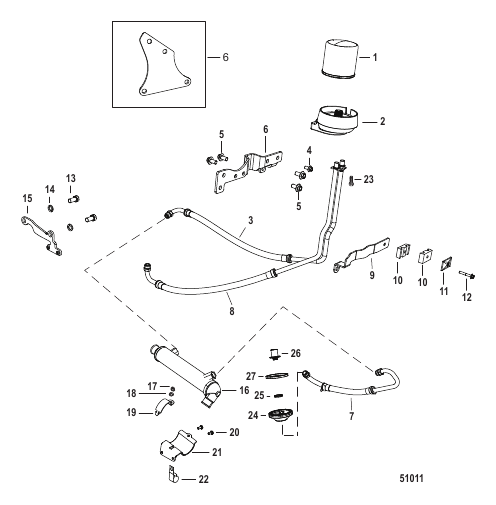

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 862958A1 |
КОМПЛЕКТ ФИТИНГОВ FITTING KIT |
1 | |
| 1 | 866340Q03 |
ФИЛЬТР Масло марки Quicksilver FILTER Oil |
1 | |
| 1 | 866340K01 |
ФИЛЬТР Масло марки Mercury FILTER Oil - Mercury Brand |
1 | |
| 10 | 8M2009216 |
ЗАЖИМ CLAMP |
2 | |
| 11 | 8M2009217 |
ПЛАСТИНА PLATE |
1 | |
| 12 | 82130040 |
ВИНТ (M6 x 40) MCM SCREW (M6 x 40) MCM |
1 | |
| 12 | 82130045 |
ВИНТ (M6 x 45) MIE SCREW (M6 x 45) MIE |
1 | |
| 13 | 806677 |
БОЛТ BOLT |
2 | disc. |
| 14 | 54012 |
ШАЙБА (0.530 x 0.870 x 0.105), нержавеющая сталь WASHER (.530 x .870 x .105) Stainless Steel |
2 | superseded |
| 15 | 8M2018755 |
КРОНШТЕЙН BRACKET |
1 | |
| 16 | 8M0070248 |
ОХЛАДИТЕЛЬ Масло COOLER Oil |
1 | |
| 17 | 401376 |
ГАЙКА (M6) NUT (M6) |
1 | |
| 18 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь MCM WASHER (.281 x .625 x .065) Stainless Steel MCM |
1 | |
| 18 | 828442 |
ШАЙБА MIE WASHER MIE |
1 | |
| 19 | 807445T |
ЗАЖИМ CLAMP |
1 | |
| 2 | 8M0070128 |
КОРПУС Выносное масляное устройство HOUSING Remote oil |
1 | |
| 20 | 98253 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 21 | 863905T |
КРОНШТЕЙН BRACKET |
1 | |
| 22 | 92850 |
ЗАЖИМ CLAMP |
1 | |
| 23 | 4010610 |
ВИНТ (M6 x 10), нержавеющая сталь SCREW (M6 x 10) Stainless Steel |
2 | |
| 24 | 862870T |
ПЕРЕХОДНИК ADAPTER |
1 | |
| 25 | 42077 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 26 | 862958 |
ФИТИНГ FITTING |
1 | |
| 27 | 862957 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 28 | 8M2000565 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Component of Item 3 and 8 O-RING Component of Item 3 and 8 |
2 | |
| 3 | 8M2021626 |
МАСЛОПРОВОД Cooler to filter MCM/MIE OIL LINE Cooler to filter MCM/MIE |
1 | |
| 3 | 8M2022420 |
МАСЛОПРОВОД Cooler to filter V-drive OIL LINE Cooler to filter V-drive |
1 | |
| 4 | 4010716 |
ВИНТ (M8 x 16) SCREW (M8 x 16) |
1 | |
| 5 | 4010820 |
ВИНТ Шестигранный фланец (M10 x 20), нержавеющая сталь SCREW (M10 x 20) Hex Flange - Stainless Steel |
4 | |
| 6 | 8M2023670 |
КРОНШТЕЙН Remote oil MCM/MIE BRACKET Remote oil MCM/MIE |
1 | |
| 6 | 8M2021921 |
КРОНШТЕЙН Remote oil V-drive BRACKET Remote oil V-drive |
1 | |
| 7 | 8M2021679 |
МАСЛОПРОВОД Block to cooler OIL LINE Block to cooler |
1 | |
| 8 | 8M2021625 |
МАСЛОПРОВОД Filter to block MCM/MIE OIL LINE Filter to block MCM/MIE |
1 | |
| 8 | 8M2022419 |
МАСЛОПРОВОД Filter to block V-drive OIL LINE Filter to block V-drive |
1 | |
| 9 | 8M0070911 |
КРОНШТЕЙН Oil line BRACKET Oil line |
1 |
