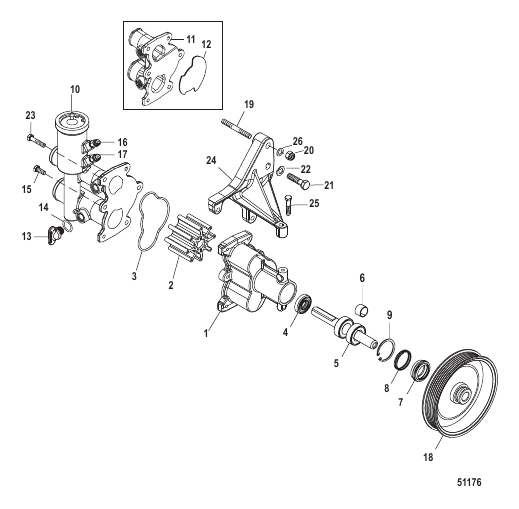

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 862914T10 |
КОМПЛЕКТ НАСОСА Забортная вода Without Air Fittings PUMP KIT Sea Water Without Air Fittings |
1 | superseded |
| - | 862914T11 |
КОМПЛЕКТ НАСОСА Забортная вода With Air Fittings PUMP KIT Sea Water With Air Fittings |
1 | superseded |
| - | 8M0050018 |
КОМПЛЕКТ ВЕДУЩЕГО ВАЛА В СБОРЕ DRIVESHAFT ASSEMBLY KIT |
1 | superseded |
| 1 | 862914A13 |
КОРПУС В СБОРЕ Крыльчатка HOUSING ASSEMBLY Impeller |
1 | superseded |
| 10 | 863674A05 |
КОМПЛЕКТ КРЫШЕК Корпус крыльчатки With Air Fittings COVER KIT Impeller Housing With Air Fittings |
1 | |
| 11 | 862776A01 |
КОМПЛЕКТ КРЫШЕК Корпус крыльчатки Without Air Fittings COVER KIT Impeller Housing Without Air Fittings |
1 | |
| 12 | 8M2014176 |
ПЛАСТИНА Wear PLATE Wear |
1 | superseded |
| 13 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
2 | superseded |
| 14 | 8M2000926 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 15 | 4000328 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
6 | superseded |
| 16 | 863718 |
ФИТИНГ Серый – прямой Male Air (.1562) Component of 46-862914T11 FITTING Gray - Straight Male Air (.1562) Component of 46-862914T11 |
1 | superseded |
| 17 | 863719 |
ФИТИНГ Оранжевый – прямой Male Air (.1875) Component of 46-862914T11 FITTING Orange - Straight Male Air (.1875) Component of 46-862914T11 |
1 | superseded |
| 18 | 862351T |
ШКИВ PULLEY |
1 | superseded |
| 19 | 863853 |
ШПИЛЬКА STUD |
2 | |
| 2 | 862232A2 |
КРЫЛЬЧАТКА See Service Bulletin 2016-09R1 IMPELLER See Service Bulletin 2016-09R1 |
1 | superseded |
| 20 | 82671112 |
ГАЙКА (.375-16) NUT (.375-16) |
2 | |
| 21 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
1 | |
| 22 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 23 | 4000331 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
2 | |
| 24 | 865143T01 |
КРОНШТЕЙН Sea Water Pump BRACKET Sea Water Pump |
1 | |
| 25 | 4000331 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
1 | |
| 26 | 38622 |
ШАЙБА (0.391 x 1.00 x 0.125) WASHER (.391 x 1.00 x .125) |
1 | disc. |
| 3 | 8M2021987 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Образованное Also included with Reference 8 and 9 O-RING Formed Also included with Reference 8 and 9 |
1 | superseded |
| 4 | 8M2001645 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | superseded |
| 5 | 862235A1 |
КАРДАННЫЙ ВАЛ В СБОРЕ DRIVESHAFT ASSEMBLY |
1 | disc. |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SPACER [1A092343] & Up NOT SOLD SEPARATE SPACER [1A092343] & Up |
1 | |
| 7 | 862040 |
УПЛОТНЕНИЕ Lip SEAL Lip |
1 | |
| 8 | 862039 |
КОЛЬЦО ДОПУСКА [1A092342] & Below TOLERANCE RING [1A092342] & Below |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SNAP RING [1A092343] & Up NOT SOLD SEPARATE SNAP RING [1A092343] & Up |
1 |
