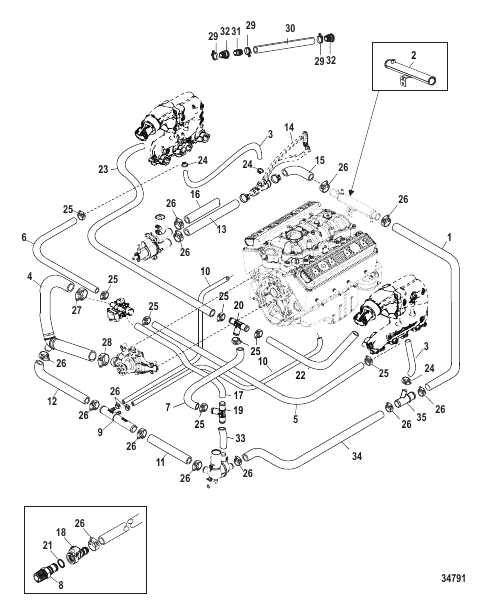

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 865255 |
РУКАВ Cooler to Drain Fitting HOSE Cooler to Drain Fitting |
1 | |
| 10 | 8623175 |
РУКАВ Cylinder Block Drain to Distribution Fitting Port 23 Inches, Starboard 17 Inches HOSE Cylinder Block Drain to Distribution Fitting Port 23 Inches, Starboard 17 Inches |
2 | superseded |
| 11 | 863490 |
РУКАВ Water Drain Accumulator to Distribution Fitting HOSE Water Drain Accumulator to Distribution Fitting |
1 | |
| 12 | 865394 |
РУКАВ HOSE |
1 | |
| 13 | 865337 |
РУКАВ Sea Pump to Water Orifice 3 Point Drain HOSE Sea Pump to Water Orifice 3 Point Drain |
1 | superseded |
| 13 | 865234 |
РУКАВ Sea Pump to Water Orifice Air Actuated Drain HOSE Sea Pump to Water Orifice Air Actuated Drain |
1 | |
| 14 | NA |
NOT AVAILABLE Orifice Meter Assembly (See 'Cool Fuel System -Bravo' page for service part number) NOT AVAILABLE Orifice Meter Assembly (See 'Cool Fuel System -Bravo' page for service part number) |
1 | |
| 15 | 865235 |
РУКАВ Water Orifice to Power Steering Cooler HOSE Water Orifice to Power Steering Cooler |
1 | superseded |
| 16 | 865672079 |
РУКАВ (Общая длина 96.00") Transom Water Pick Up to Sea Water Pump HOSE (96.00 Inches Bulk) Transom Water Pick Up to Sea Water Pump |
1 | superseded |
| 17 | 8M2013565 |
РУКАВ Tee Fitting to Thermostat Housing HOSE Tee Fitting to Thermostat Housing |
1 | |
| 18 | 862225 |
ФИТИНГ Pushlock - Block Drian Hose FITTING Pushlock - Block Drian Hose |
4 | |
| 19 | 863478 |
ФИТИНГ Тройник FITTING Tee |
1 | |
| 2 | 863841T |
ТРУБА Вода TUBE Water |
1 | |
| 20 | 8M2014000 |
ФИТИНГ Тройник, синий FITTING Tee, Blue |
1 | |
| 21 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
2 | |
| 22 | 8M2007295 |
РУКАВ Fitting to Starboard Elbow HOSE Fitting to Starboard Elbow |
1 | |
| 23 | 8M2007296 |
РУКАВ Fitting to Port Elbow HOSE Fitting to Port Elbow |
1 | |
| 24 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 25 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
AR | |
| 26 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
AR | |
| 27 | 8M2001490 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | superseded |
| 28 | 8M2001490 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
AR | superseded |
| 29 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter) |
3 | superseded |
| 3 | 4285069 |
РУКАВ (Общая длина 44.00") Exhaust Manifold to Orifice Fitting (Port 9 Inches, Starboard 3.5 Inches) HOSE (44.00 Inches Bulk) Exhaust Manifold to Orifice Fitting (Port 9 Inches, Starboard 3.5 Inches) |
1 | superseded |
| 30 | 865672013 |
РУКАВ (4.00") HOSE (4.00 Inches) |
1 | superseded |
| 31 | 865362 |
БЫСТРОРАЗЪЕМНЫЙ Transom Hose QUICK CONNECT Transom Hose |
1 | |
| 32 | 865324 |
БЫСТРОРАЗЪЕМНЫЙ Transom Hose QUICK CONNECT Transom Hose |
2 | |
| 33 | 3322070 |
РУКАВ (Общая длина 48.00") Distribution Housing to Fitting (Cut to 12.5 Inches) HOSE (48.00 Inches Bulk) Distribution Housing to Fitting (Cut to 12.5 Inches) |
1 | superseded |
| 34 | 866331 |
РУКАВ Distribution Housing to Drain Fitting HOSE Distribution Housing to Drain Fitting |
1 | |
| 35 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 | |
| 4 | 863456A1 |
ШЛАНГ В СБОРЕ Thermostat Housing to Circulating Pump HOSE ASSEMBLY Thermostat Housing to Circulating Pump |
1 | |
| 5 | 864393 |
РУКАВ Thermostat Housing to Port Manifold HOSE Thermostat Housing to Port Manifold |
1 | |
| 6 | 863459 |
РУКАВ Thermostat Housing to Starboard Manifold HOSE Thermostat Housing to Starboard Manifold |
1 | |
| 7 | 8M2013567 |
РУКАВ Fitting to Fitting HOSE Fitting to Fitting |
1 | |
| 8 | 862603 |
ФИТИНГ Male Quick Connector, Threaded - Engine Block FITTING Male Quick Connector, Threaded - Engine Block |
2 | superseded |
| 9 | 864989A01 |
ФИТИНГИ В СБОРЕ Lower Distribution FITTING ASSEMBLY Lower Distribution |
1 | superseded |
