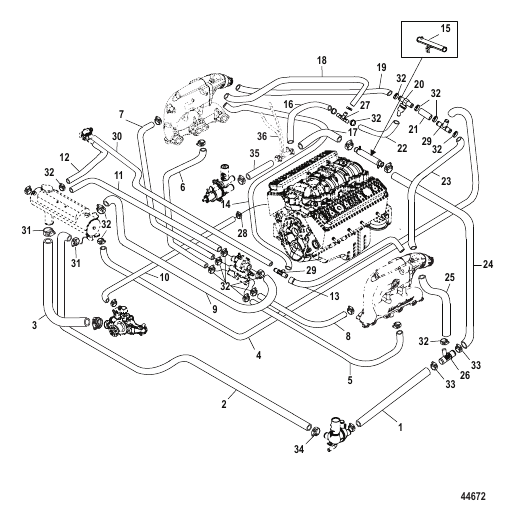

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 879172A16 |
ШЛАНГ В СБОРЕ Дополнительный MCM/MIE Inline HOSE ASSEMBLY Supplemental MCM/MIE Inline |
1 | |
| 1 | 866331 |
РУКАВ Distribution Housing to Drain Fitting HOSE Distribution Housing to Drain Fitting |
1 | |
| 1 | 8M2007277 |
РУКАВ Distribution Housing to Drain Fitting Axius HOSE Distribution Housing to Drain Fitting Axius |
1 | |
| 10 | 864551 |
РУКАВ Intake Bypass to Circulating Pump HOSE Intake Bypass to Circulating Pump |
1 | |
| 11 | 864507 |
РУКАВ Thermostat Housing to Heat Exchanger HOSE Thermostat Housing to Heat Exchanger |
1 | |
| 12 | 8M2013831 |
РУКАВ Poppet to Heat Exchanger HOSE Poppet to Heat Exchanger |
1 | |
| 13 | 8M2013791 |
РУКАВ Tee Fitting to Port Elbow HOSE Tee Fitting to Port Elbow |
1 | |
| 14 | 8M2013890 |
РУКАВ Tee Fitting to Starboard Elbow HOSE Tee Fitting to Starboard Elbow |
1 | |
| 15 | 863841T |
ТРУБА Вода TUBE Water |
1 | |
| 16 | 8M2012446 |
РУКАВ Fitting to Fitting HOSE Fitting to Fitting |
1 | |
| 17 | 865235 |
РУКАВ Water Orifice to Cooler HOSE Water Orifice to Cooler |
1 | superseded |
| 18 | 4285069 |
РУКАВ (Общая длина 44.00") Tee Fitting to Starboard Elbow Cut to 8 Inches HOSE (44.00 Inches Bulk) Tee Fitting to Starboard Elbow Cut to 8 Inches |
1 | superseded |
| 19 | 8M2012182 |
РУКАВ Fitting Assembly to Starboard Elbow HOSE Fitting Assembly to Starboard Elbow |
1 | |
| 19 | 8M2014806 |
РУКАВ Fitting to Starboard Elbow Axius HOSE Fitting to Starboard Elbow Axius |
1 | |
| 2 | 864431 |
РУКАВ Distribution Housing to Heat Exchanger HOSE Distribution Housing to Heat Exchanger |
1 | |
| 20 | 8M2012295 |
ФИТИНГИ В СБОРЕ FITTING ASSEMBLY |
1 | superseded |
| 21 | 3322070 |
РУКАВ (Общая длина 48.00") Fitting Assembly to Tee Fitting Cut to 3 Inches HOSE (48.00 Inches Bulk) Fitting Assembly to Tee Fitting Cut to 3 Inches |
1 | superseded |
| 21 | 8M2014440 |
РУКАВ Fitting Assembly to Tee Fitting Axius HOSE Fitting Assembly to Tee Fitting Axius |
1 | |
| 22 | 4285069 |
РУКАВ (Общая длина 44.00") Tee Fitting to Fitting Assembly Cut to 6 Inches HOSE (44.00 Inches Bulk) Tee Fitting to Fitting Assembly Cut to 6 Inches |
1 | superseded |
| 22 | 4285069 |
РУКАВ (Общая длина 44.00") Tee Fitting to Fitting Assembly Cut to 4.38 Inches, Axius HOSE (44.00 Inches Bulk) Tee Fitting to Fitting Assembly Cut to 4.38 Inches, Axius |
1 | superseded |
| 23 | 8M2012181 |
РУКАВ Tee Fitting to Port Elbow HOSE Tee Fitting to Port Elbow |
1 | |
| 23 | 8M2014805 |
РУКАВ Tee Fitting to Port Elbow Axius HOSE Tee Fitting to Port Elbow Axius |
||
| 24 | 865255 |
РУКАВ Y- Fitting to Cooler HOSE Y- Fitting to Cooler |
1 | |
| 24 | 8M2014783 |
РУКАВ Tube to Y-Fitting Axius HOSE Tube to Y-Fitting Axius |
1 | |
| 25 | 4285069 |
РУКАВ (Общая длина 44.00") Fitting to Port Elbow Cut to 26 Inches HOSE (44.00 Inches Bulk) Fitting to Port Elbow Cut to 26 Inches |
1 | superseded |
| 25 | 4285069 |
РУКАВ (Общая длина 44.00") Fitting to Drain Fitting Cut to Fit HOSE (44.00 Inches Bulk) Fitting to Drain Fitting Cut to Fit |
1 | superseded |
| 26 | 862993 |
ФИТИНГ Y, (2) 1-1/4" Ниппели шлангов / (1) 3/4" Ниппель шланга FITTING Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb |
1 | |
| 27 | 863464 |
ФИТИНГ FITTING |
1 | |
| 28 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 29 | 863478 |
ФИТИНГ Тройник FITTING Tee |
12 | |
| 3 | 864886 |
РУКАВ Heat Exchanger to Circulating Pump HOSE Heat Exchanger to Circulating Pump |
1 | |
| 30 | 8M2014437 |
РУКАВ Fitting to Poppet HOSE Fitting to Poppet |
1 | superseded |
| 31 | 8M2001490 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | superseded |
| 32 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) CLAMP Worm Gear (1.56 Diameter) |
AR | |
| 33 | 815504228 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
AR | |
| 34 | 8M2001490 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | superseded |
| 35 | 865234 |
РУКАВ HOSE |
1 | |
| 36 | NA |
NOT AVAILABLE Orifice Meter Assembly See 'Cool Fuel System -Bravo' page for service part number NOT AVAILABLE Orifice Meter Assembly See 'Cool Fuel System -Bravo' page for service part number |
1 | |
| 4 | 8M2012180 |
РУКАВ Heat Exchanger to Tee Fitting HOSE Heat Exchanger to Tee Fitting |
1 | |
| 5 | 864508 |
РУКАВ Thermostat Housing to Lower Manifold, Port HOSE Thermostat Housing to Lower Manifold, Port |
1 | |
| 6 | 864509 |
РУКАВ Thermostat Housing to Lower Manifold, Starboard HOSE Thermostat Housing to Lower Manifold, Starboard |
1 | |
| 7 | 8M2013803 |
РУКАВ Thermostat Housing to Upper Manifold, Starboard HOSE Thermostat Housing to Upper Manifold, Starboard |
1 | |
| 7 | 8M2000468 |
РУКАВ Thermostat Housing to Upper Manifold, Starboard Axius HOSE Thermostat Housing to Upper Manifold, Starboard Axius |
1 | |
| 8 | 8M2000464 |
РУКАВ Thermostat Housing to Upper Manifold, Port HOSE Thermostat Housing to Upper Manifold, Port |
1 | |
| 9 | 864506 |
РУКАВ Thermostat Housing to Heat Exchanger HOSE Thermostat Housing to Heat Exchanger |
1 |
