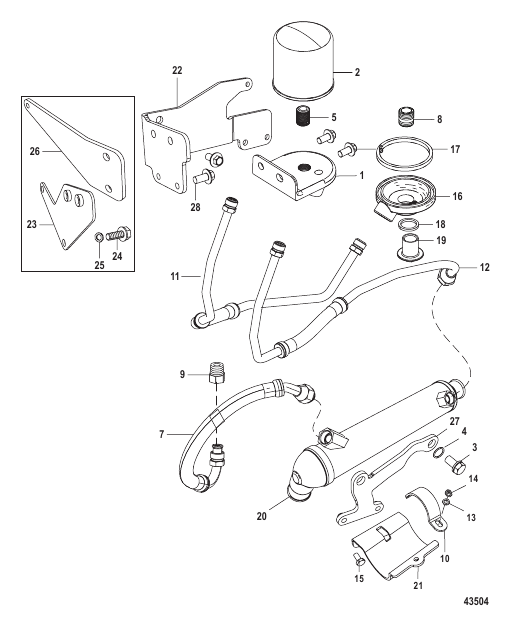

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863732T1 |
КРОНШТЕЙН Remote Oil Filter BRACKET Remote Oil Filter |
1 | |
| 10 | 807445T |
ЗАЖИМ Cooler Bracket CLAMP Cooler Bracket |
1 | |
| 11 | 8M2017405 |
ТРУБОПРОВОД Oil, Filter Base to Block LINE Oil, Filter Base to Block |
1 | |
| 11 | 8M2017575 |
ТРУБОПРОВОД Oil, Filter Base to Block V-Drive LINE Oil, Filter Base to Block V-Drive |
1 | |
| 12 | 8M2017485 |
ТРУБОПРОВОД Oil, Filter to Cooler LINE Oil, Filter to Cooler |
1 | |
| 12 | 8M2017574 |
ТРУБОПРОВОД Oil, Filter to Cooler V-Drive LINE Oil, Filter to Cooler V-Drive |
1 | |
| 13 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь WASHER (.281 x .625 x .065) Stainless Steel |
1 | |
| 14 | 401366 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 15 | 28636 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
2 | |
| 16 | 862870T |
ПЕРЕХОДНИК Oil Filter ADAPTER Oil Filter |
1 | |
| 17 | 862957 |
УПЛОТНЕНИЕ Oil Filter Adapter SEAL Oil Filter Adapter |
1 | |
| 18 | 42077 |
УПЛОТНЕНИЕ Swivel Tube SEAL Swivel Tube |
1 | |
| 19 | 862958 |
ФИТИНГ Oil Filter Adapter FITTING Oil Filter Adapter |
1 | |
| 2 | 866340Q03 |
ФИЛЬТР Масло марки Quicksilver FILTER Oil |
1 | |
| 2 | 866340K01 |
ФИЛЬТР Масло марки Mercury FILTER Oil - Mercury Brand |
1 | |
| 20 | 8M0045696 |
ОХЛАДИТЕЛЬ Oil COOLER Oil |
1 | |
| 21 | 863905T |
КРОНШТЕЙН Oil Cooler BRACKET Oil Cooler |
1 | |
| 22 | 8M0045300 |
КРОНШТЕЙН Remote Oil BRACKET Remote Oil |
1 | |
| 23 | 8M2017667 |
КРОНШТЕЙН Remote Oil V-Drive BRACKET Remote Oil V-Drive |
1 | |
| 24 | 47461 |
ВИНТ (0.437-14 x 1.00) V-Drive SCREW (.437-14 x 1.00) V-Drive |
2 | |
| 25 | 22248 |
ШАЙБА (0.453 x 0.875 x 0.060) V-Drive WASHER (.453 x .875 x .060) V-Drive |
2 | |
| 26 | 8M2018019 |
СКОБА Front Lifting Eye V-Drive BRACE Front Lifting Eye V-Drive |
1 | |
| 27 | 8M2018755 |
КРОНШТЕЙН Oil Cooler, Intermediate BRACKET Oil Cooler, Intermediate |
1 | |
| 28 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь Remote Oil/V-Drive Brace to Collector SCREW (M6 x 12) Stainless Steel Remote Oil/V-Drive Brace to Collector |
1 | |
| 3 | 8M2019251 |
ВИНТ (0.500-13 x 1.00) Oil Cooler to Block SCREW (.500-13 x 1.00) Oil Cooler to Block |
2 | superseded |
| 4 | 54012 |
ШАЙБА (0.530 x 0.870 x 0.105), нержавеющая сталь WASHER (.530 x .870 x .105) Stainless Steel |
2 | superseded |
| 5 | 863485 |
ФИТИНГ FITTING |
1 | |
| 6 | 4010820 |
ВИНТ Шестигранный фланец (M10 x 20), нержавеющая сталь SCREW (M10 x 20) Hex Flange - Stainless Steel |
2 | |
| 7 | 8M2017402 |
РУКАВ Oil, Cooler to Adapter HOSE Oil, Cooler to Adapter |
1 | |
| 8 | 805632 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 9 | 93190 |
ФИТИНГ (NPTF 0.375 x инвертированная свеча зажигания 0.50) FITTING (.375 NPTF x .50 Inverted Flare) |
1 |
