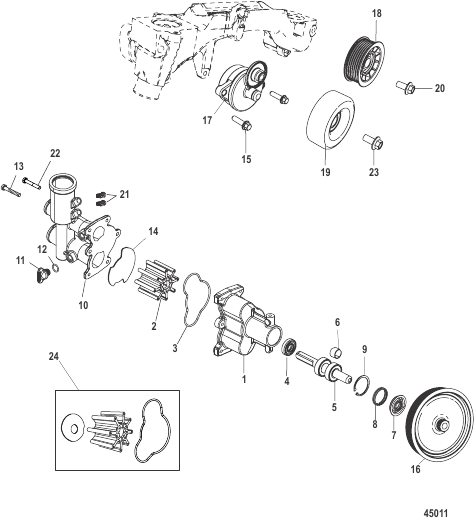

Seawater Pump
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0139996 |
PUMP KIT Sea Water With Air Fittings PUMP KIT Sea Water With Air Fittings |
1 | |
| - | 8M0140001 |
DRIVESHAFT ASSEMBLY KIT DRIVESHAFT ASSEMBLY KIT |
1 | |
| 1 | 8M0139984 |
HOUSING ASSEMBLY Impeller HOUSING ASSEMBLY Impeller |
1 | |
| 10 | 863674A04 |
КОМПЛЕКТ КРЫШЕК Корпус крыльчатки COVER KIT Impeller Housing |
1 | |
| 11 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 12 | 26802 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.424 x 0.103) O-RING (.424 x .103) |
2 | |
| 13 | 4000328 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
6 | superseded |
| 13 | 8M0214928 |
SCREW (M6 x 16) SCREW (M6 x 16) |
6 | |
| 14 | 8M0180871 |
PLATE PLATE |
1 | |
| 15 | 8M0103813 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
2 | |
| 16 | 8M0141645 |
PULLEY PULLEY |
1 | |
| 17 | 865597T |
НАТЯЖНОЕ УСТРОЙСТВО Ремень TENSIONER Belt |
1 | |
| 18 | 807757T |
ШКИВ В СБОРЕ Холостой ролик – черный PULLEY ASSEMBLY Idler - Black |
1 | |
| 19 | 865777 |
ШКИВ Idler, Non-Grooved PULLEY Idler, Non-Grooved |
1 | |
| 2 | 8M0104229 |
КОМПЛЕКТ КРЫЛЬЧАТОК See Service Bulletin 2016-09R1 IMPELLER KIT See Service Bulletin 2016-09R1 |
1 | |
| 20 | 4010820 |
ВИНТ Шестигранный фланец (M10 x 20), нержавеющая сталь SCREW (M10 x 20) Hex Flange - Stainless Steel |
1 | |
| 21 | 8M0082320 |
ФИТИНГ Оранжевый – прямой FITTING Orange - Straight |
1 | |
| 21 | 8M0082319 |
ФИТИНГ Серый – прямой FITTING Gray - Straight |
1 | |
| 22 | 865152 |
ВИНТ (M6) SCREW (M6) |
2 | |
| 23 | 4010820 |
ВИНТ Шестигранный фланец (M10 x 20), нержавеющая сталь SCREW (M10 x 20) Hex Flange - Stainless Steel |
1 | |
| 24 | 8M0137219 |
IMPELLER KIT Heavy Duty See Service Bulletin 2016-09R1 IMPELLER KIT Heavy Duty See Service Bulletin 2016-09R1 |
1 | |
| 3 | 8M0204740 |
O-RING Formed O-RING Formed |
1 | |
| 4 | 8M0146317 |
SEAL SEAL |
1 | |
| 5 | 862235A1 |
КАРДАННЫЙ ВАЛ В СБОРЕ Impeller DRIVESHAFT ASSEMBLY Impeller |
1 | discontinued |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SPACER [1A351543] & Up NOT SOLD SEPARATE SPACER [1A351543] & Up |
1 | |
| 7 | 862040 |
УПЛОТНЕНИЕ Lip SEAL Lip |
1 | |
| 8 | 862039 |
КОЛЬЦО ДОПУСКА [1A351542] & Below TOLERANCE RING [1A351542] & Below |
1 | |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО SNAP RING [1A351543] & Up NOT SOLD SEPARATE SNAP RING [1A351543] & Up |
1 |
